Garage with usable area 82,52 m2.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 82,52 m² |
| 2. Additional area | 82,52 m² |
| 3. Total surface | 219,8 m² |
| 4. Building area | 98,4 m² |
| 5. Net volume | 345,92 m³ |
| 6. Gross volume | 473,28 m³ |
| 7. Building height | 6,74 m |
| 8. Attic wall height | 0,2 m |
| 9. Roof angle | 35 ° |
| 10. Roof area | 151,5 m² |
| 11. Сeiling height | 2,8 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete with a thickness of 30 cm, extruded styrofoam |
| 3. Exterior walls | Porotherm ceramic hollow bricks, thickness 30 cm, by Wienerberger, styrofoam Gold fasada, by Termo Organika |
| 4. Interior walls | Porotherm Profi ceramic hollow bricks, thickness 25 cm, by Wienerberger firm |
| 5. Ceiling | made of reinforced concrete, monolithic |
| 6. Roof construction | wooden, insulated with rockwool |
| 7. Roofing | ceramic roof tile Koramic by Wienerberger |
| 8. Facade | silicone plaster color: white/cream, pedestal clad with virgin stone cut |
| 9. Windows and doors | wooden |
| 10. Type of heating | boiler on at |
| 11. Ventilation | gravitational |

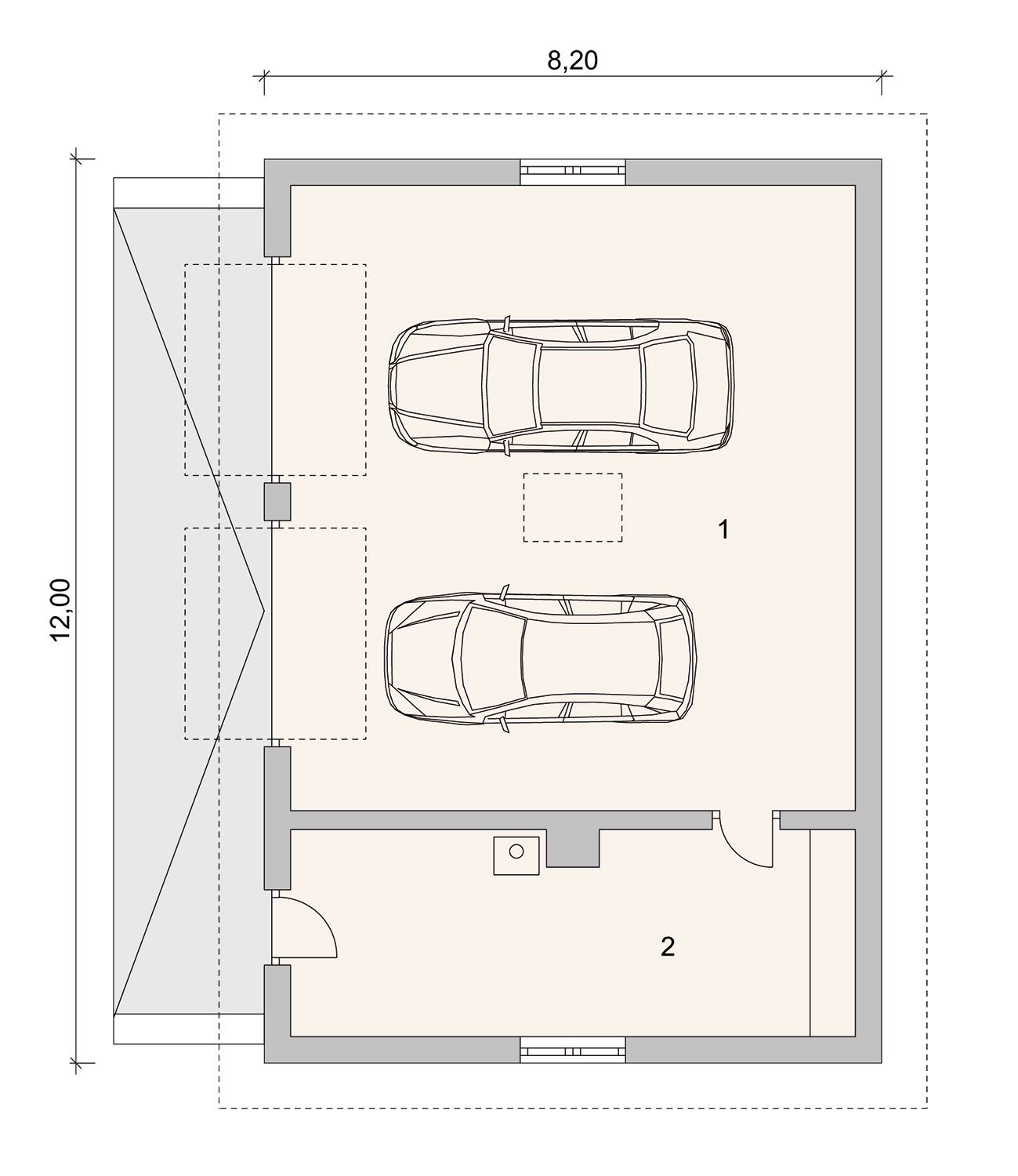

Ground floor
| Usable area | 82,52 m2 |
| 1. Garage | 62,25 m2 |
| 2. Storeroom | 20,27 m2 |
Attic
| Usable area | 16,07 (84,22) m2 |
| 1. Attic space | 84,22 (16,07) m2 |
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
