See Mirror image

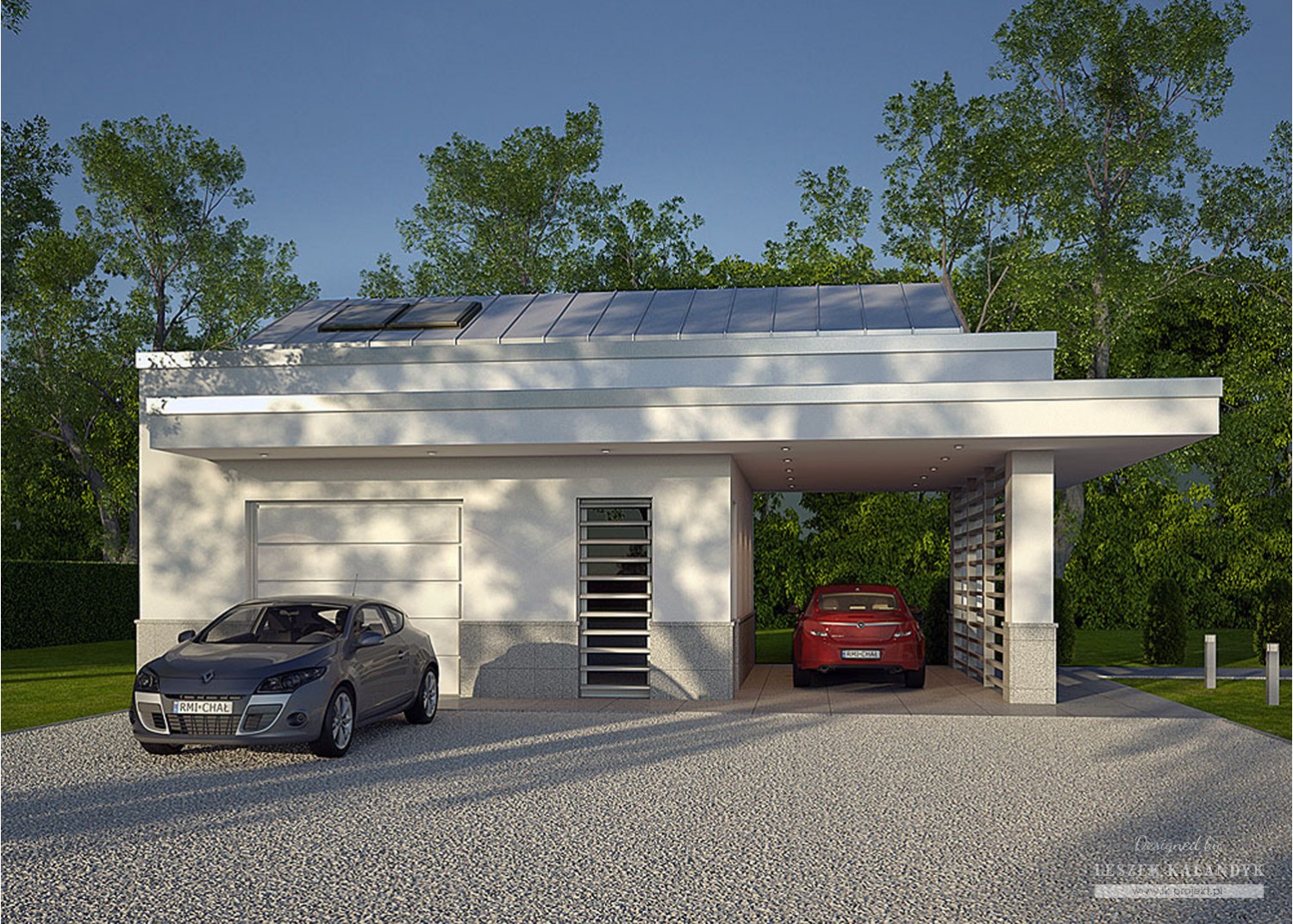

Garage with usable area 50,2 m2. Minimum size of a plot needed for building a garage is 7x12 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 50,2 m² |
| 2. Total surface | 154,95 m² |
| 3. Building area | 84 m² |
| 4. Net volume | 164,5 m³ |
| 5. Gross volume | 427,57 m³ |
| 6. Building height | 6 m |
| 7. Roof angle | 45 ° |
| 8. Roof area | 50 m² |
| 9. Сeiling height | 2,67/2,62 m |
| 10. Minimum plot size | 7 x 12 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | made of concrete hollow bricks with a thickness of 30 cm, insulated with 20 cm thick Styrofoam Gold foundation by Termo Organika firm |
| 3. Exterior walls | made of Porotherm 30 Profi ceramic hollow bricks with a thickness of 30 cm by Wienerberger,insulated with Gold fasada styrofoam with a thickness of 20 cm by Termo Organika |
| 4. Ceiling | made of reinforced concrete |
| 5. Roof construction | wooden structure, insulated with 30 cm thick mineral wool by Rockwool firm, timber structure of reinforced concrete ceiling made of reinforced concrete according to Bauder system |
| 6. Roofing | titanium-zinc sheet metal |
| 7. Facade | finished with silicone plaster, stone lining - travertine |
| 8. Windows and doors | aluminum by Sch?cko firm |
| 9. Type of heating | electric heaters |
| 10. Ventilation | gravitational |
Ground floor
| Usable area | 36,93 m2 |
| 1. Storeroom | 36,93 m2 |
Attic
| Usable area | 13,27 (28,22) m2 |
| 1. Attic space | (28,22) 13,27 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
Recently viewed projects
50,2 m²
980 ZŁ
- Usable area 50,2 m²
- Total surface 154,95 m²
- Building area 84 m²
- Net volume 164,5 m³
- Gross volume 427,57 m³
- Foundation footings made of reinforced concrete
- Foundation walls made of concrete hollow bricks with a thickness of 30 cm, insulated with 20 cm thick Styrofoam Gold foundation by Termo Organika firm
- Exterior walls made of Porotherm 30 Profi ceramic hollow bricks with a thickness of 30 cm by Wienerberger,insulated with Gold fasada styrofoam with a thickness of 20 cm by Termo Organika
- Ceiling made of reinforced concrete
- Roof construction wooden structure, insulated with 30 cm thick mineral wool by Rockwool firm, timber structure of reinforced concrete ceiling made of reinforced concrete according to Bauder system
