We will call you!
Hit
See Mirror image
Two storey house in modern style with usable area 149,04 m2. House with a large garage. Minimum size of a plot needed for building a house is 21,62x24,92 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 149,04 m² |
| 2. Area garage | 34,8 m² |
| 3. Additional area | 4,04 m² |
| 4. Total surface | 321,69 m² |
| 5. Building area | 173,19 m² |
| 6. Net volume | 490 m³ |
| 7. Gross volume | 1050 m³ |
| 8. Energy for heating | 13,7 kWh/m²*year |
| 9. Building height | 7,13 m |
| 10. Roof angle | 1,1 ° |
| 11. Roof area | 129,2 m² |
| 12. Сeiling height | 2,55/2,62/2,65 m |
| 13. Minimum plot size | 21,62 x 24,92 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete blocks with a thickness of 25 and 30 cm, insulated with Styrofoam with a thickness of 15 cm |
| 3. Exterior walls | made of Porotherm 44 Eko+Dryfix ceramic hollow bricks by Wienerberger |
| 4. Interior walls | made of ceramic hollow bricks Porotherm Dryfix 25, 11.5 by Wienerberger firm |
| 5. Ceiling | made of reinforced concrete |
| 6. Roof construction | reinforced concrete ceiling, insulated with PIR FA polyurethane foam plates with a thickness of 20 cm by Bauder firm. |
| 7. Roofing | artificial roof foil according to the system of the Bauder firm |
| 8. Facade | finished with silicone plaster and KMK KLINKIER clinker brick, stone lining |
| 9. Windows and doors | aluminum |
| 10. Type of heating | boiler on at |
| 11. Ventilation | mechanical with recuperation |

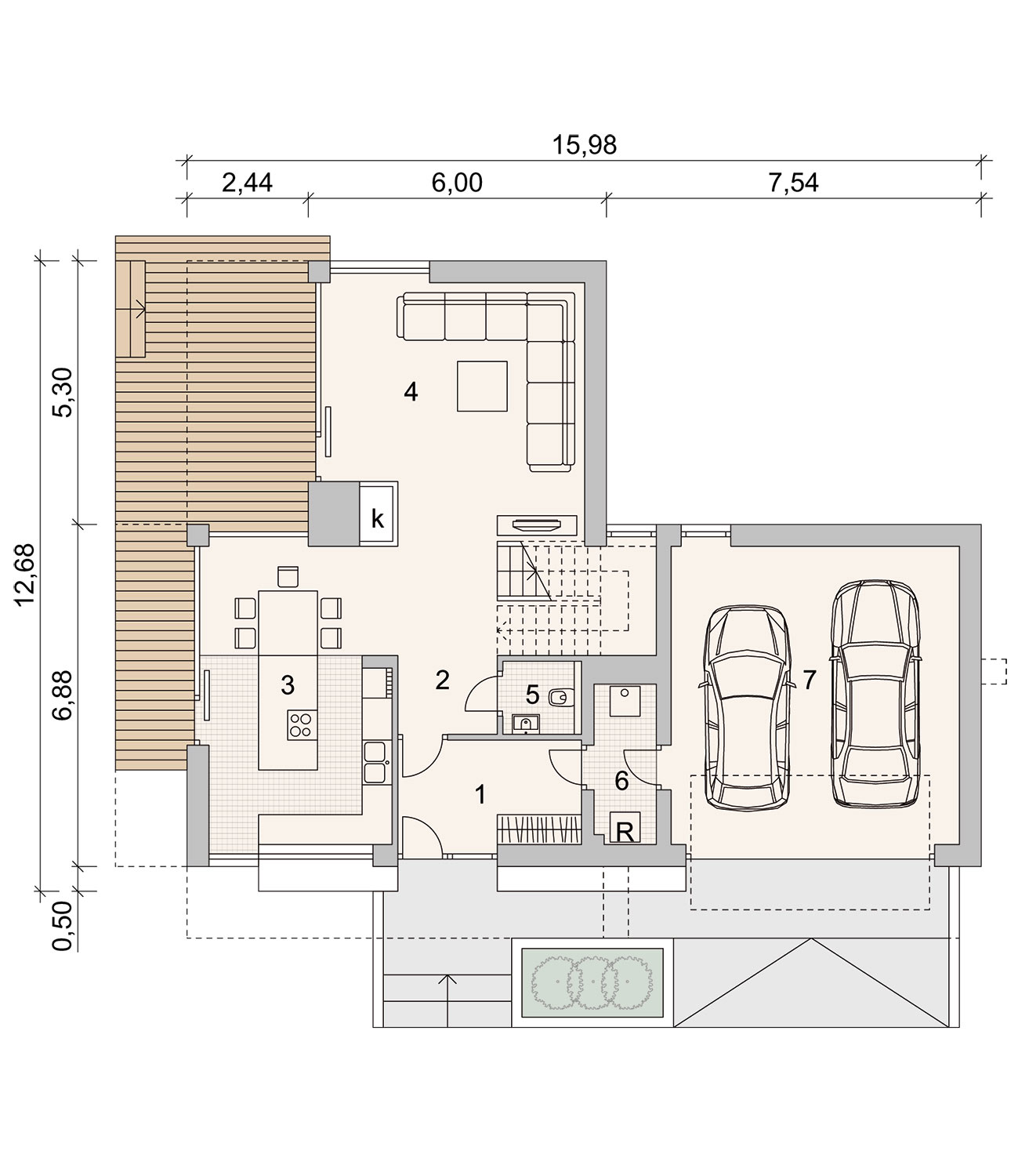

Ground floor
| Usable area | 65,25 m2 |
| 1. Lobby | 7,77 m2 |
| 2. Hall | 7,57 m2 |
| 3. Kitchen with dining area | 22,21 m2 |
| 4. Living room | 25,37 m2 |
| 5. Bathroom | 2,33 m2 |
| 6. Boiler room | 4,04 m2 |
| 7. Garage | 34,8 m2 |
Floor
| Usable area | 83,79 m2 |
| 1. Hall | 14,91 m2 |
| 2. Bedroom | 25,85 m2 |
| 3. Bedroom 2 | 15,07 m2 |
| 4. Bedroom 3 | 15 m2 |
| 5. Bathroom | 10,88 m2 |
| 6. Laundry room | 2,08 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
