Two storey house in modern style with usable area 195,68 m2. House with a large garage. Minimum size of a plot needed for building a house is 27,1x23,7 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 195,68 m² |
| 2. Area garage | 44,44 m² |
| 3. Additional area | 3,19 m² |
| 4. Total surface | 494,8 m² |
| 5. Building area | 237,62 m² |
| 6. Net volume | 656,94 m³ |
| 7. Gross volume | 1728 m³ |
| 8. Energy for heating | 20 kWh/m²*year |
| 9. Building height | 7,5 m |
| 10. Roof angle | 0,9 ° |
| 11. Roof area | 239,1 m² |
| 12. Сeiling height | 2,7 m |
| 13. Minimum plot size | 27,1 x 23,7 m |
| 1. Foundation footings | ferroconcrete |
| 2. Foundation walls | made of brick, made of poured concrete blocks with a thickness of 24 and 30 cm |
| 3. Exterior walls | of aerated concrete blocks Ytong Energo thickness of 48 cm by Xella firm |
| 4. Interior walls | fromYtong cellular concrete blocks with a thickness of 24 cm and 12 cm thick Silka blocks by Xella firms |
| 5. Ceiling | ferroconcrete |
| 6. Roof construction | full ceiling with a traditional arrangement of coats |
| 7. Roofing | titanium-zinc sheet metal. |
| 8. Facade | finished with silicone plaster and clinker tiles |
| 9. Windows and doors | aluminum |
| 10. Type of heating | gas boiler, solar assisted hot water, floor heating |
| 11. Ventilation | mechanical with recuperation |

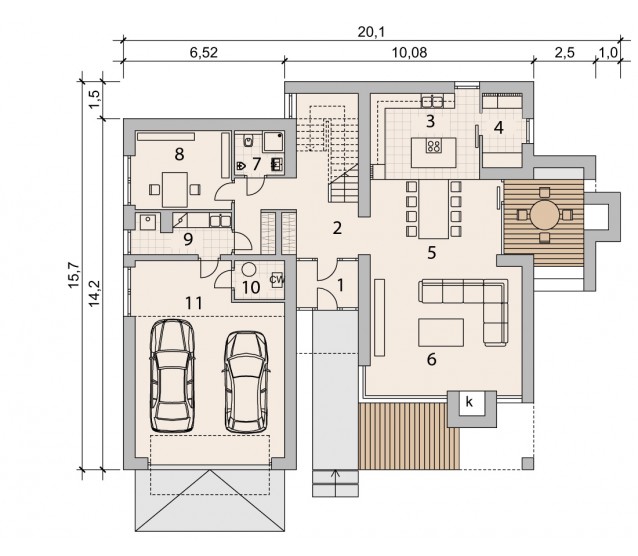

Ground floor
| Usable area | 112,63 m2 |
| 1. Tambour | 4,75 m2 |
| 2. Corridor | 16,28 m2 |
| 3. Kitchen | 15,38 m2 |
| 4. Pantry | 4,8 m2 |
| 5. Canteen | 18,02 m2 |

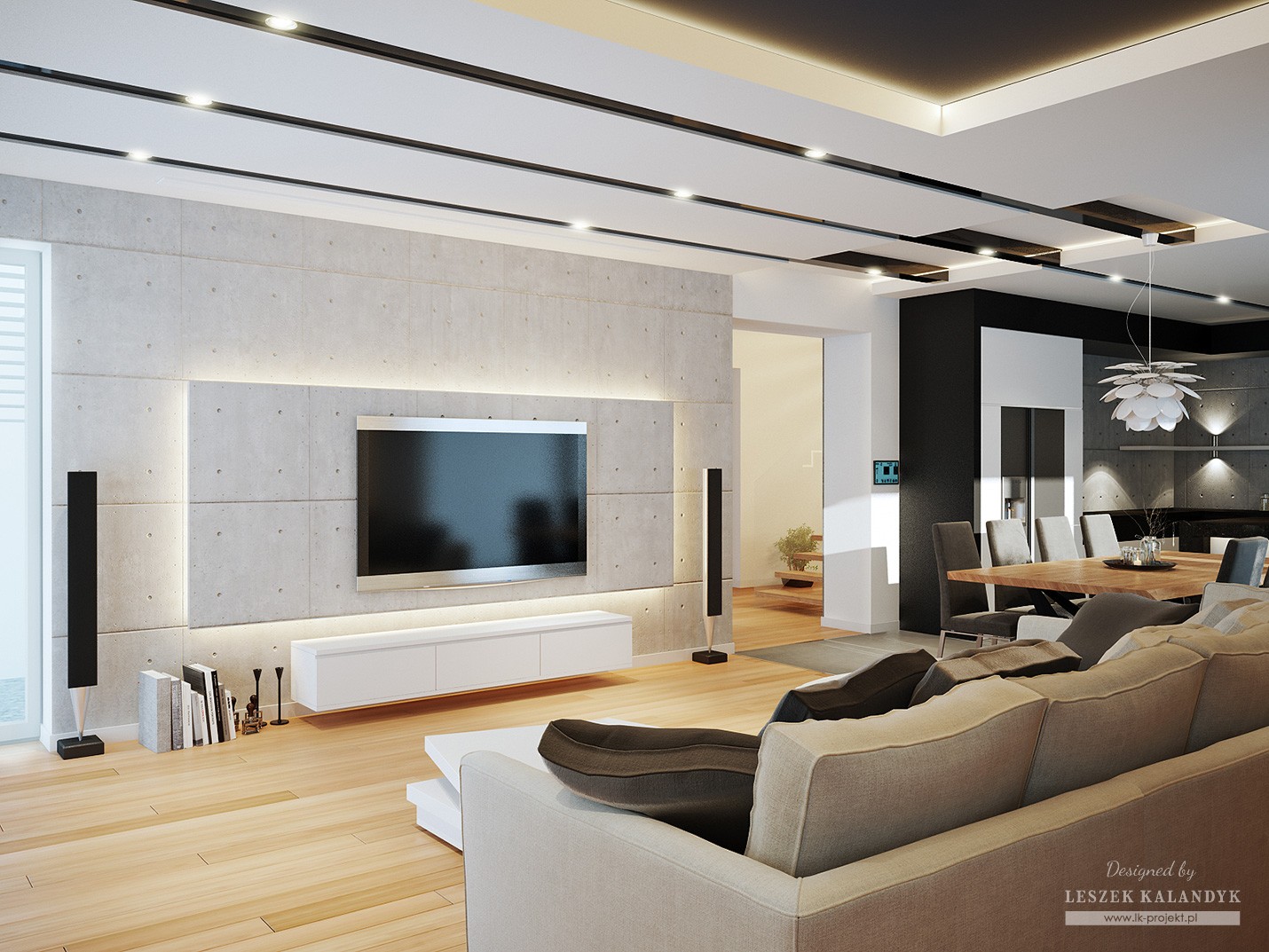

| 6. Living room | 30,95 m2 |
| 7. Bathroom | 3,64 m2 |
| 8. Office | 12,48 m2 |
| 9. Boiler room with laundry room | 6,33 m2 |
| 10. Central Air | 3,19 m2 |
| 11. Garage | 44,44 m2 |
Floor
| Usable area | 83,05 m2 |
| 1. Tambour | 8,61 m2 |
| 2. Wardrobe | 9,83 m2 |
| 3. Bedroom | 22,27 m2 |
| 4. Bathroom | 10,92 m2 |
| 5. Bedroom 2 | 15,71 m2 |
| 6. Bedroom 3 | 15,71 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
