See Mirror image
House with attic in traditional style with usable area 140,94 m2. House with a single garage. Minimum size of a plot needed for building a house is 21x30,7 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 140,94 m² |
| 2. Area garage | 24,38 m² |
| 3. Attic area | 58,26 m² |
| 4. Additional area | 8,94 m² |
| 5. Total surface | 477,42 m² |
| 6. Building area | 238,71 m² |
| 7. Net volume | 513,5 m³ |
| 8. Gross volume | 1283,22 m³ |
| 9. Energy for heating | 10,12 kWh/m²*year |
| 10. Building height | 8,41 m |
| 11. Roof angle | 35 ° |
| 12. Roof area | 333 m² |
| 13. Сeiling height | 2,75 m |
| 14. Minimum plot size | 21 x 30,7 m |
| 1. Foundation footings | ferroconcrete |
| 2. Foundation walls | of hollow bricks of thickness 30 and 25 cm, insulated with Styrofoam Gold foundation by Termo Organika firm |
| 3. Exterior walls | made of Porotherm Profi ceramic hollow bricks with a thickness of 30 cm by Wienerberger, insulated with 20 cm thick Gold Facade styrofoam by Termo Organika company |
| 4. Interior walls | of Porotherm Profi ceramic hollow bricks by Wienerberger with thicknesses of 25 and 11.5 cm |
| 5. Ceiling | ferroconcrete |
| 6. Roof construction | wooden, purlin and plywood roof |
| 7. Roofing | ceramic Koramic Karpi?wka roof tile by Wienerberger |
| 8. Facade | finished with silicone plaster, pedestal clad with cut natural stone, buttresses clad with natural split stone, arcades finished with facade wood by MOCO firm |
| 9. Windows and doors | PVC by Oknoplast |
| 10. Type of heating | gas boiler |
| 11. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 140,94 m2 |
| 1. Lobby | 8,94 m2 |
| 2. Corridor | 15,75 m2 |
| 3. Pantry | 4,81 m2 |
| 4. Kitchen | 8,33 m2 |
| 5. Living room with dining area | 39,6 m2 |
| 6. Laundry room | 5,65 m2 |
| 7. Bathroom | 5,87 m2 |
| 8. Bedroom | 14,97 m2 |
| 9. Wardrobe | 4,78 m2 |
| 10. Wardrobe 2 | 6,02 m2 |
| 11. Room | 11,94 m2 |
| 12. Room 2 | 11,94 m2 |
| 13. Restroom | 2,34 m2 |
| 14. Boiler room | 8,94 m2 |
| 15. Garage | 24,38 m2 |

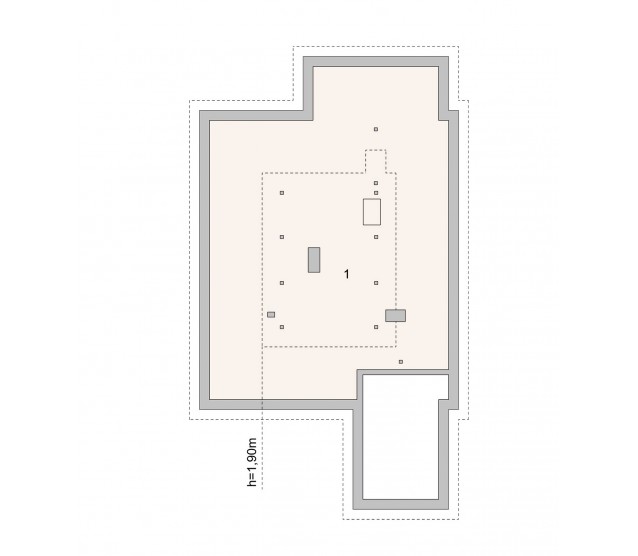

Attic
| Usable area | 58,26 (173,37) m2 |
| 1. Attic space | (173,37) 58,26 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
Recently viewed projects
140,94 + 91,58 m²
4,470 ZŁ
- Usable area 140,94 m²
- Area garage 24,38 m²
- Attic area 58,26 m²
- Additional area 8,94 m²
- Total surface 477,42 m²
- Foundation footings ferroconcrete
- Foundation walls of hollow bricks of thickness 30 and 25 cm, insulated with Styrofoam Gold foundation by Termo Organika firm
- Exterior walls made of Porotherm Profi ceramic hollow bricks with a thickness of 30 cm by Wienerberger, insulated with 20 cm thick Gold Facade styrofoam by Termo Organika company
- Interior walls of Porotherm Profi ceramic hollow bricks by Wienerberger with thicknesses of 25 and 11.5 cm
- Ceiling ferroconcrete
