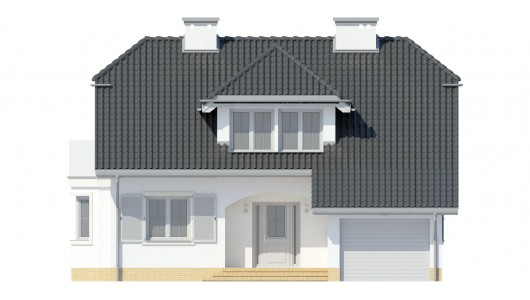

House with attic in traditional style with usable area 127,88 m2. House with a single garage. Minimum size of a plot needed for building a house is 20,3x22,5 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 127,88 m² |
| 2. Basement area | 17,02 m² |
| 3. Area garage | 17,25 m² |
| 4. Total surface | 249,13 m² |
| 5. Building area | 135,88 m² |
| 6. Net volume | 487 m³ |
| 7. Gross volume | 754 m³ |
| 8. Energy for heating | 12 kWh/m²*year |
| 9. Building height | 8,03 m |
| 10. Attic wall height | 0,99 m |
| 11. Roof angle | 38 ° |
| 12. Roof area | 232,5 m² |
| 13. Сeiling height | 2,65/3,00 m |
| 14. Minimum plot size | 20,3 x 22,5 m |
| 1. Foundation footings | ferroconcrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | made of Ytong Energo aerated concrete blocks 40 cm thick |
| 4. Interior walls | load-bearing from Ytong blocks with a thickness of 24 cm and partitions from Silka blocks with a thickness of 12 cm |
| 5. Ceiling | ferroconcrete |
| 6. Roof construction | wooden, insulated with mineral wool from Rockwool company with a thickness of 17 cm |
| 7. Roofing | ceramic roof tile |
| 8. Facade | finished with mineral plaster, house-building pedestals clad with clinker |
| 9. Windows and doors | wooden, roof windows by Fakro |
| 10. Type of heating | gas boiler |
| 11. Ventilation | gravitational |

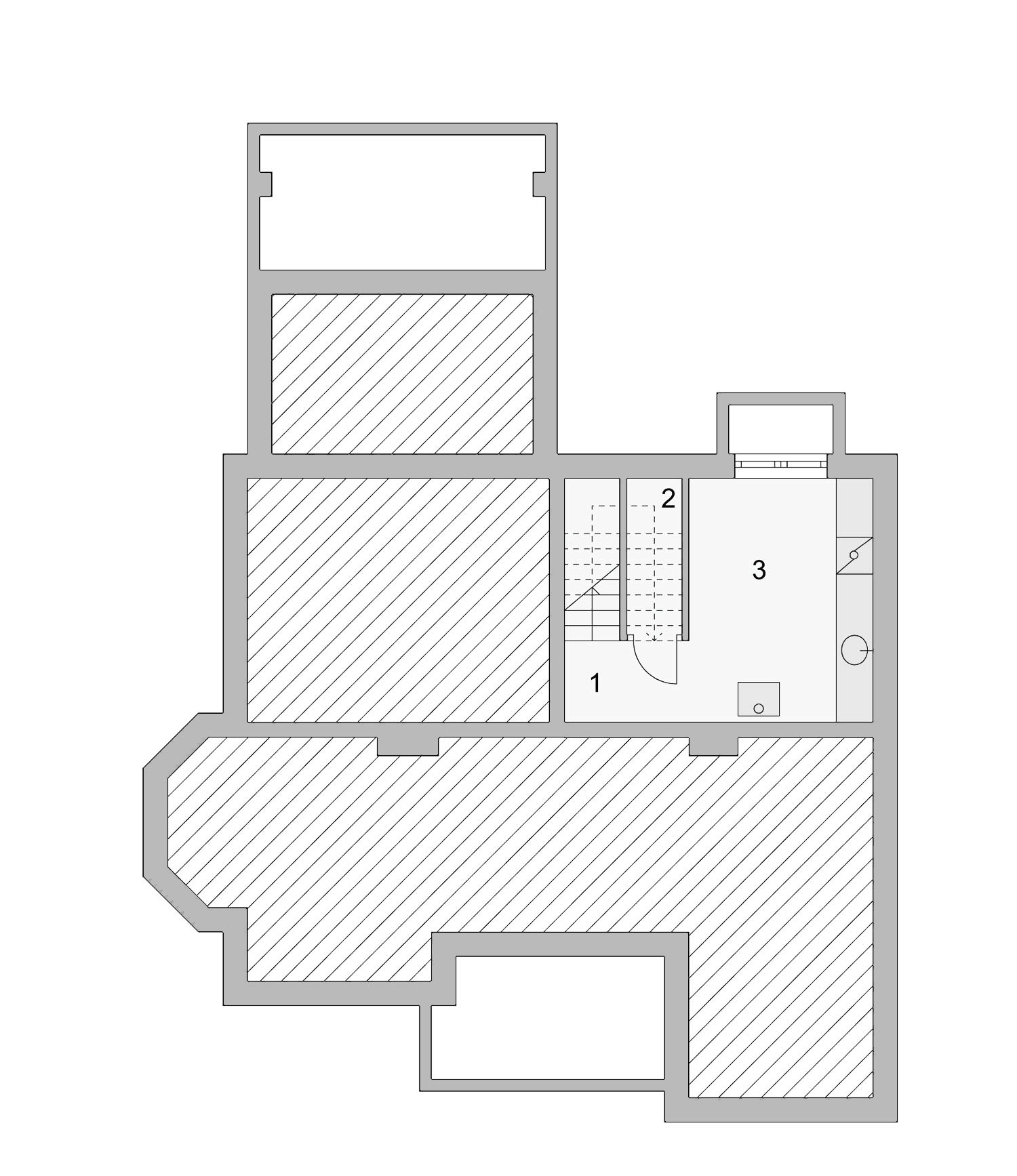

Basement
| Usable area | 17,02 m2 |
| 1. Lobby | 3,06 m2 |
| 2. Pantry | 2,02 m2 |
| 3. Laundry room with boiler | 11,94 m2 |
Ground floor
| Usable area | 72,8 m2 |
| 1. Lobby | 4,65 m2 |
| 2. Hall | 7,11 m2 |
| 3. Pantry | 1,9 m2 |
| 4. Kitchen | 14,79 m2 |
| 5. Living room | 31,16 m2 |
| 6. Room | 11,94 m2 |
| 7. Restroom | 1,25 m2 |
| 8. Garage | 17,25 m2 |

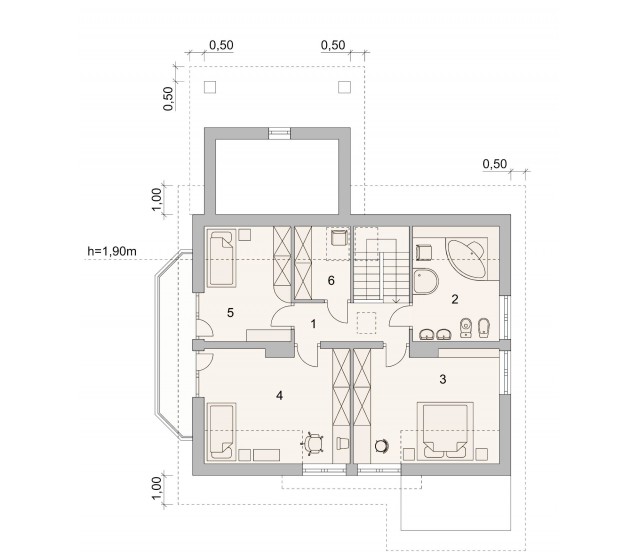

Attic
| Usable area | 55,08 (72,25) m2 |
| 1. Hall | (4,95) 4,95 m2 |
| 2. Bathroom | (11,94) 8,45 m2 |
| 3. Bedroom | (19,37) 15,26 m2 |
| 4. Bedroom 2 | (19,47) 15,42 m2 |
| 5. Bedroom 3 | (12,44)) 8,80 m2 |
| 6. Wardrobe | (4,07) 2,20 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
