Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 498,63 m² |
| 2. Additional area | 87,62 m² |
| 3. Total surface | 782,33 m² |
| 4. Building area | 360,18 m² |
| 5. Building height | 7,30 m |
| 6. Roof angle | 2 ° |
| 7. Сeiling height | 2,70 m |
| 8. Minimum plot size | 42,20 x 23,00 m |
| 1. Foundation footings | reinforced concrete |
| 2. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termoorganika TERMONIUM Fasada styrofoam by Termo Organika with a thickness of 20 cm |
| 3. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 4. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 5. Ceiling | made of reinforced concrete, monolithic |
| 6. Roof construction | wooden |
| 7. Facade | Laminam quartz sintered material facade plates, white and anthracite silicone plaster, Equiton fiber-cement facade plates |
| 8. Windows and doors | aluminum by Aluprof firms |
| 9. Ventilation | mechanical with recuperation |
Basement
| Usable area | 126,74 + 26,51 m2 |
| 1. Corridor | 27,36 m2 |
| 2. Gym | 53,67 m2 |
| 3. Locker room | 9,27 m2 |
| 4. Storeroom | 7,44 m2 |
| 5. Utility room | 16,38 m2 |
| 6. Storeroom 2 | 2,69 m2 |
| 7. Restroom | 36,44 m2 |
Ground floor
| Usable area | 210,69 + 61,11 m2 |
| 1. Lobby | 9,10 m2 |
| 2. Wardrobe | 13,61 m2 |
| 3. Corridor | 32,08 m2 |
| 4. Kitchen | 31,29 m2 |
| 5. Pantry | 10,83 m2 |
| 6. Canteen | 16,40 m2 |
| 7. Living room | 46,17 m2 |
| 8. Library | 9,50 m2 |
| 9. Office | 15,47 m2 |
| 10. Guest room | 15,40 m2 |
| 11. Wardrobe 2 | 4,32 m2 |
| 12. Bathroom | 6,52 m2 |
| 13. Storeroom | 4,24 m2 |
| 14. Garage | 56,87 m2 |

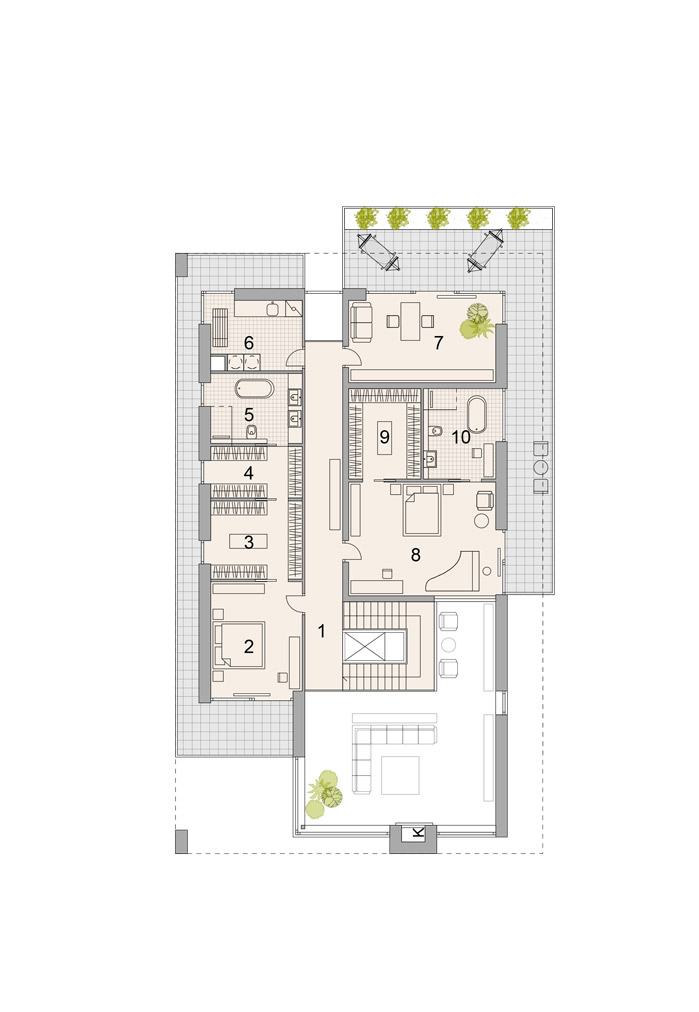

Floor
| Usable area | 161,20 m2 |
| 1. Corridor | 23,84 m2 |
| 2. Master Bedroom | 18,06 m2 |
| 3. Wardrobe | 12,51 m2 |
| 4. Wardrobe 2 | 8,54 m2 |
| 5. Bathroom | 11,99 m2 |
| 6. Laundry room | 11,11 m2 |
| 7. Library | 21,87 m2 |
| 8. Bedroom | 29,69 m2 |
| 9. Wardrobe 3 | 11,81 m2 |
| 10. Bathroom 2 | 11,78 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
