Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 230,18 m² |
| 2. Additional area | 202,48 m² |
| 3. Total surface | 703,34 m² |
| 4. Building area | 223,6 m² |
| 5. Building height | 10,50 m |
| 6. Roof angle | 35 ° |
| 7. Сeiling height | 2,70; 2,80 m |
| 8. Minimum plot size | 30,70x 21,60 m |
| 1. Foundation footings | reinforced concrete |
| 2. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termoorganika TERMONIUM Fasada styrofoam by Termo Organika with a thickness of 20 cm |
| 3. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 4. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 5. Ceiling | made of reinforced concrete, monolithic |
| 6. Roof construction | wooden |
| 7. Windows and doors | aluminum by Aluprof firms |
| 8. Ventilation | mechanical with recuperation |
Basement
| Usable area | 158,80 m2 |
| 1. Corridor | 8,30 m2 |
| 2. Restroom | 28,50 m2 |
| 3. Pantry | 5,00 m2 |
| 4. Storeroom | 10,50 m2 |
| 5. Utility room | 13,00 m2 |
| 6. Storeroom 2 | 41,20 m2 |
| 7. Storeroom 3 | 37,20 m2 |
| 8. Storeroom 4 | 10,60 m2 |
| 9. Corridor 2 | 4,50 m2 |

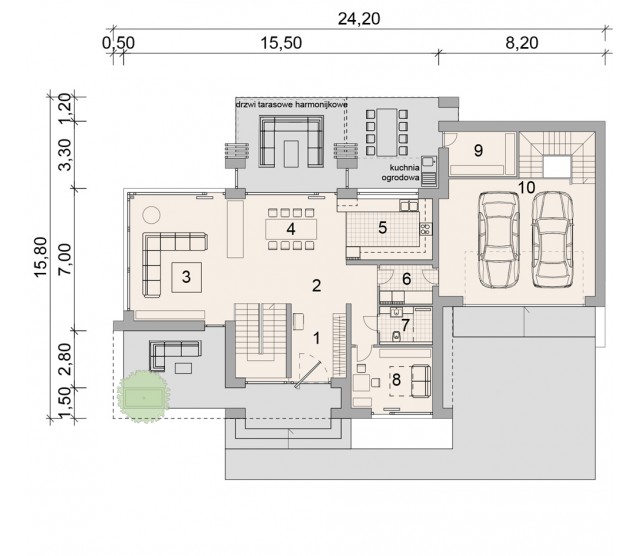

Ground floor
| Usable area | 115,58 + 43,68 m2 |
| 1. Lobby | 9,80 m2 |
| 2. Corridor | 13,71 m2 |
| 3. Living room | 30,00 m2 |
| 4. Canteen | 20,00 m2 |
| 5. Kitchen | 12,75 m2 |
| 6. Pantry | 5,03 m2 |
| 7. Bathroom | 4,90 m2 |
| 8. Room | 12,00 m2 |
| 9. Utility room | 7,39 m2 |
| 10. Garage | 43,68 m2 |
Floor
| Usable area | 114,60 m2 |
| 1. Corridor | 13,60 m2 |
| 2. Room | 19,00 m2 |
| 3. Bedroom | 22,50 m2 |
| 4. Wardrobe | 13,50 m2 |
| 5. Bathroom | 15,01 m2 |
| 6. Laundry room | 5,76 m2 |
| 7. Room 2 | 15,74 m2 |
| 8. Bathroom 2 | 9,49 m2 |
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
