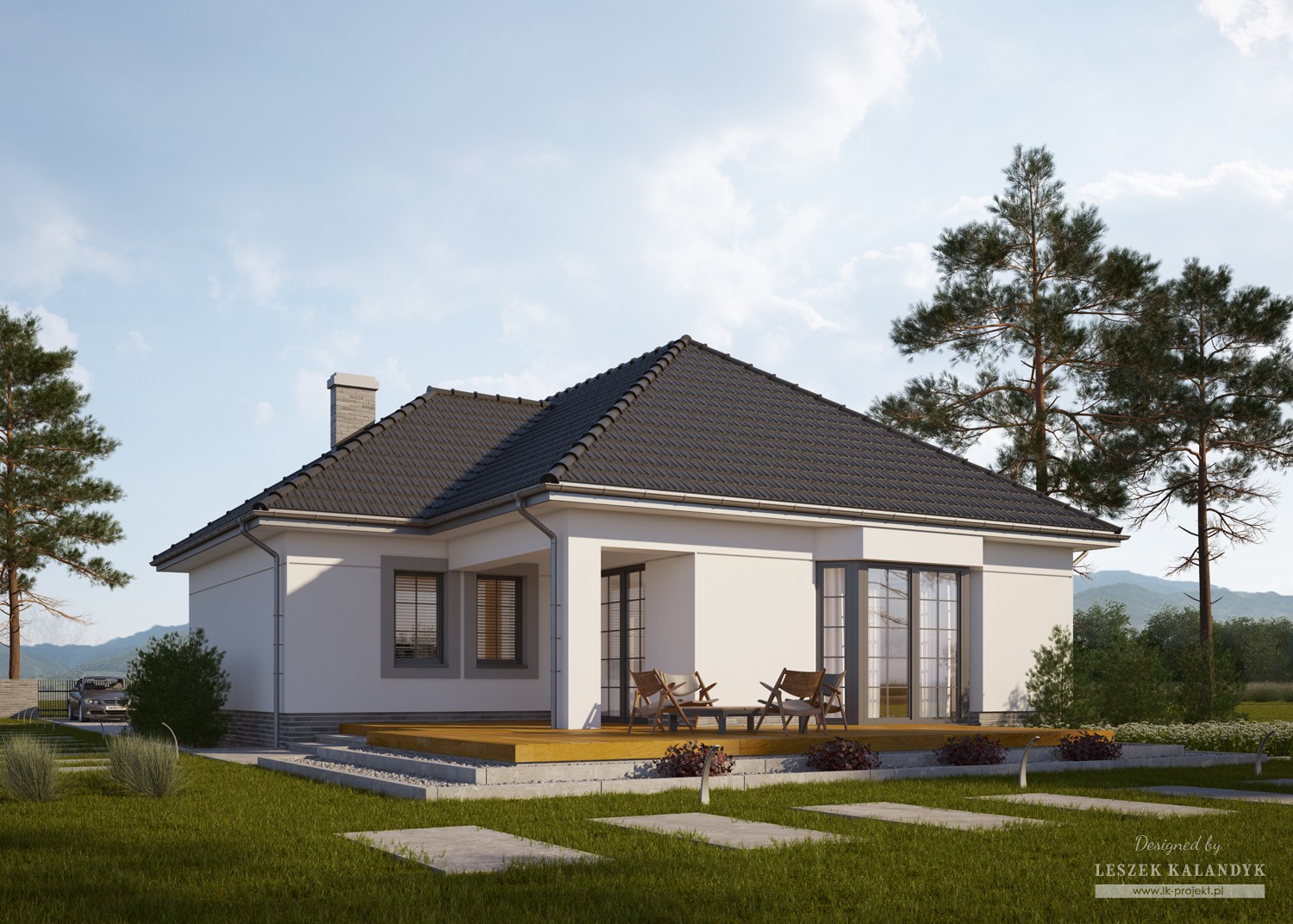

One-story house in traditional style with usable area 121,59 m2. Minimum size of a plot needed for building a house is 19x25,4 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 121,59 m² |
| 2. Total surface | 155,18 m² |
| 3. Building area | 211 m² |
| 4. Net volume | 333,52 m³ |
| 5. Energy for heating | 16,29 kWh/m²*year |
| 6. Building height | 7,37 m |
| 7. Attic wall height | 0,45 m |
| 8. Roof angle | 35 ° |
| 9. Roof area | 260 m² |
| 10. Сeiling height | 2,66 m |

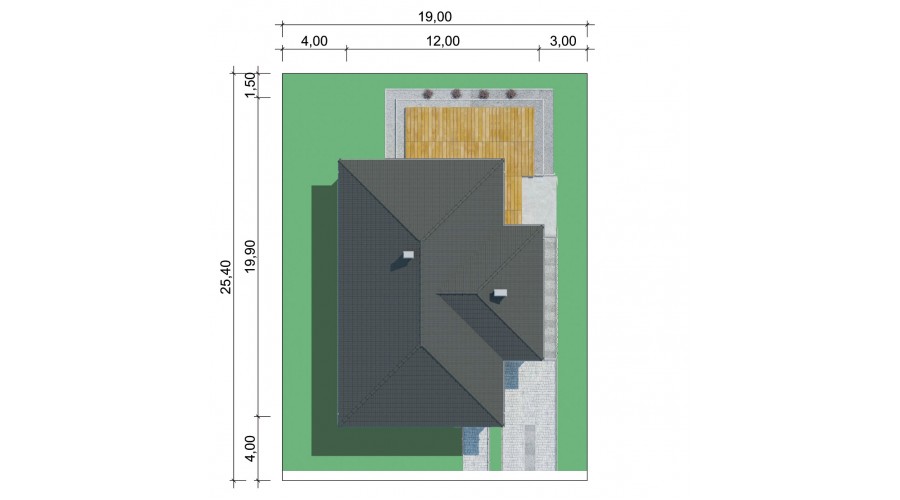

| 11. Minimum plot size | 19 x 25,4 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Interior walls | made of Porotherm ceramic hollow bricks of thickness 25, 11.5 by Wienerberger firm |
| 4. Ceiling | wooden |
| 5. Roof construction | wooden one insulated with rockwool |
| 6. Roofing | Roben ceramic roof tile |
| 7. Facade | finished with silicone plaster, colour white, grey, pedestals covered with clinker tiles |
| 8. Windows and doors | wooden |
| 9. Type of heating | gas boiler |
| 10. Ventilation | gravitational |
Ground floor
| Usable area | 121,59 m2 |
| 1. Lobby | 7,12 m2 |
| 2. Hall | 10,52 m2 |
| 3. Bathroom | 2,66 m2 |
| 4. Office | 12,09 m2 |
| 5. Guest room | 12,09 m2 |
| 6. Bathroom 2 | 7,18 m2 |
| 7. Bedroom | 14,9 m2 |
| 8. Living room | 35,49 m2 |
| 9. Kitchen | 12,67 m2 |
| 10. Boiler room with laundry room | 6,87 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
