Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 399,98 m² |
| 2. Additional area | 252,17 m² |
| 3. Total surface | 820,02 m² |
| 4. Building area | 601,99 m² |
| 5. Building height | 12,80 m |
| 6. Roof angle | 2 ° |
| 7. Сeiling height | 3,00 m |
| 8. Minimum plot size | 34,60 x 50,00 m |
| 1. Foundation footings | ferroconcrete |
| 2. Foundation walls | Ferroconcrete blocks, insulation extruded polystyrene foam |
| 3. Exterior walls | Porotherm 44T ceramic hollow brick by Wienerberger, insulation with Termo Organika styrofoam |
| 4. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger, thickness 25 cm |
| 5. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete |
| 7. Roof construction | Ceiling, wooden |
| 8. Roofing | Washed-out gravel, roof tile |
| 9. Facade | Exposed concrete, facade plates |
| 10. Windows and doors | Aluminum, by Aluprof firm |
| 11. Type of heating | Underfloor, heat pump |
| 12. Ventilation | Mechanical with recuperation |
| 13. Engineering Systems | Pool technology, heat pump |

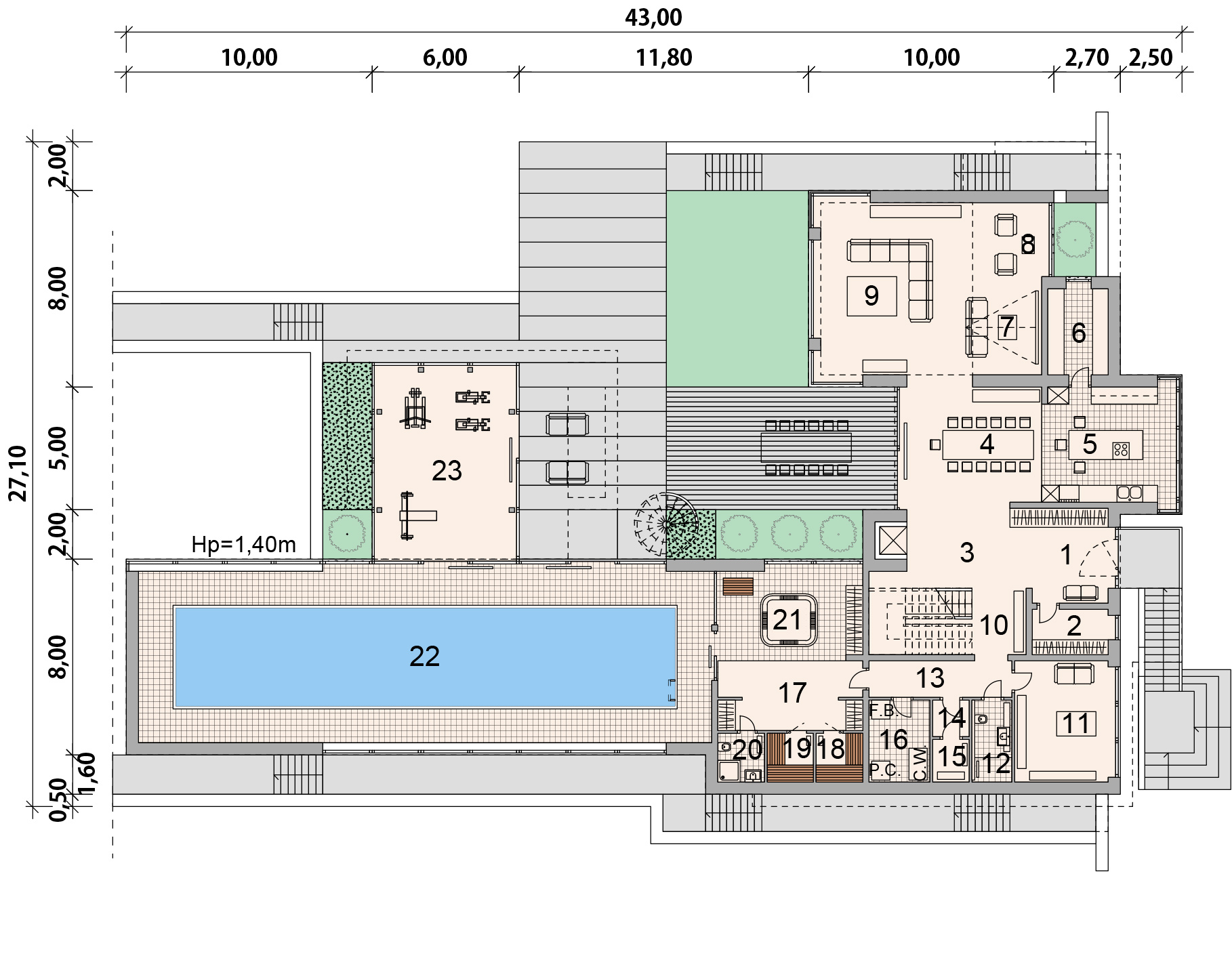

Ground floor
| Usable area | 213,28 + 252,17 m2 |
| 1. Lobby | 12,75 m2 |
| 2. Wardrobe | 5,73 m2 |
| 3. Hall | 17,99 m2 |
| 4. Canteen | 27,26 m2 |
| 5. Kitchen | 24,27 m2 |
| 6. Pantry | 8,57 m2 |
| 7. Home Theater | 11,26 m2 |
| 8. Living room | 8,44 m2 |
| 9. Living room 2 | 44,64 m2 |
| 10. Corridor | 5,94 m2 |
| 11. Guest room | 18,81 m2 |
| 12. Bathroom | 5,54 m2 |
| 13. Corridor | 9,09 m2 |
| 14. Lobby 2 | 2,21 m2 |
| 15. Pantry | 2,58 m2 |
| 16. Utility room | 8,29 m2 |
| 17. Corridor 2 | 16,58 m2 |
| 18. Dry sauna | 3,77 m2 |
| 19. Russian sauna | 3,71 m2 |
| 20. Bathroom 2 | 3,77 m2 |
| 21. Jacuzzi | 21,36 m2 |
| 22. Pool | 163,45 m2 |
| 23. Gym | 39,52 m2 |

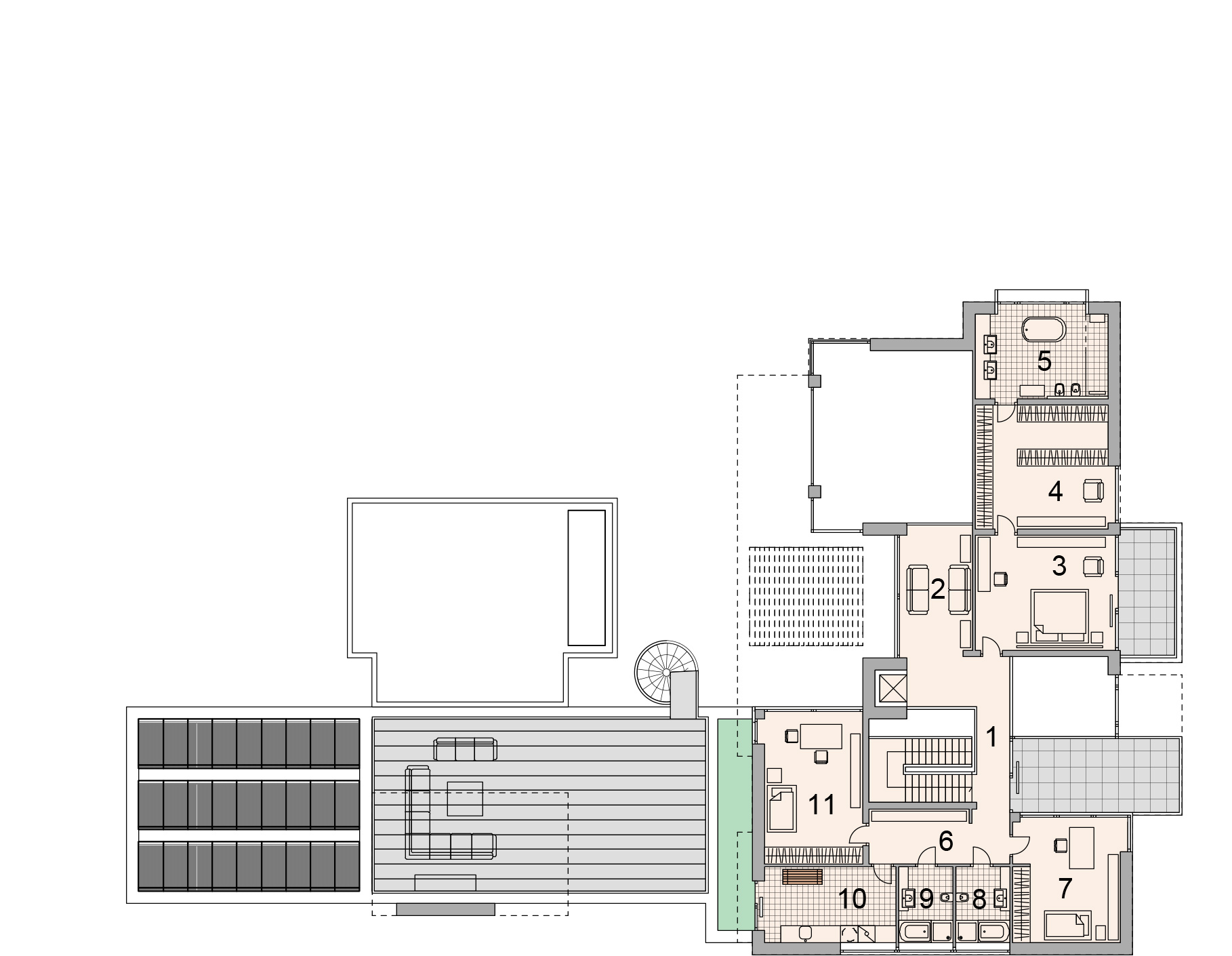

Floor
| Usable area | 186,7 m2 |
| 1. Corridor | 14,21 m2 |
| 2. Mezzanine | 13,19 m2 |
| 3. Bedroom | 25,38 m2 |
| 4. Wardrobe | 27,27 m2 |
| 5. Bathroom | 18,63 m2 |
| 6. Corridor | 12,87 m2 |
| 7. Room | 21,41 m2 |
| 8. Bathroom 2 | 6,81 m2 |
| 9. Bathroom 3 | 6,83 m2 |
| 10. Laundry room | 16,50 m2 |
| 11. Room 2 | 23,60 m2 |
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
