Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 126,36 m² |
| 2. Additional area | 38,05 m² |
| 3. Total surface | 252,46 m² |
| 4. Building area | 95,81 m² |
| 5. Net volume | 489,65 m³ |
| 6. Gross volume | 948,33 m³ |
| 7. Building height | 8,40 m |
| 8. Attic wall height | 1,00 m |
| 9. Roof angle | 42 ° |
| 10. Сeiling height | 2,60 m |
| 11. Minimum plot size | 21,65 x 15,00 m |
| 1. Foundation footings | slab foundation, insulated with foamglas T4+ with a thickness of 20cm |
| 2. Foundation walls | Made of reinforced concrete, insulated with foamglas T3+ with a thickness of 20 |
| 3. Exterior walls | Porotherm 30 Dryfix ceramic hollow bricks |
| 4. Interior walls | Porotherm Dryfix ceramic hollow bricks |
| 5. Ceiling | made of reinforced concrete, monolithic |
| 6. Roof construction | wooden |
| 7. Facade | external silicone plaster, sheet metal on upright seam |
| 8. Windows and doors | aluminum and wood |
| 9. Ventilation | mechanical with recuperation |
Basement
| Usable area | 33,46 m2 |
| 1. Lobby | 4,07 m2 |
| 2. Wardrobe | 7,20 m2 |
| 3. Laundry room | 7,97 m2 |
| 4. Boiler room | 14,22 m2 |
Ground floor
| Usable area | 61 m2 |
| 1. Corridor | 4,07 m2 |
| 2. Corridor | 6,42 m2 |
| 3. Kitchen with dining area | 8,94 m2 |
| 4. Living room | 14,63 m2 |
| 5. Wardrobe | 4,37 m2 |
| 6. Bathroom | 4,64 m2 |
| 7. Bedroom | 17,93 m2 |

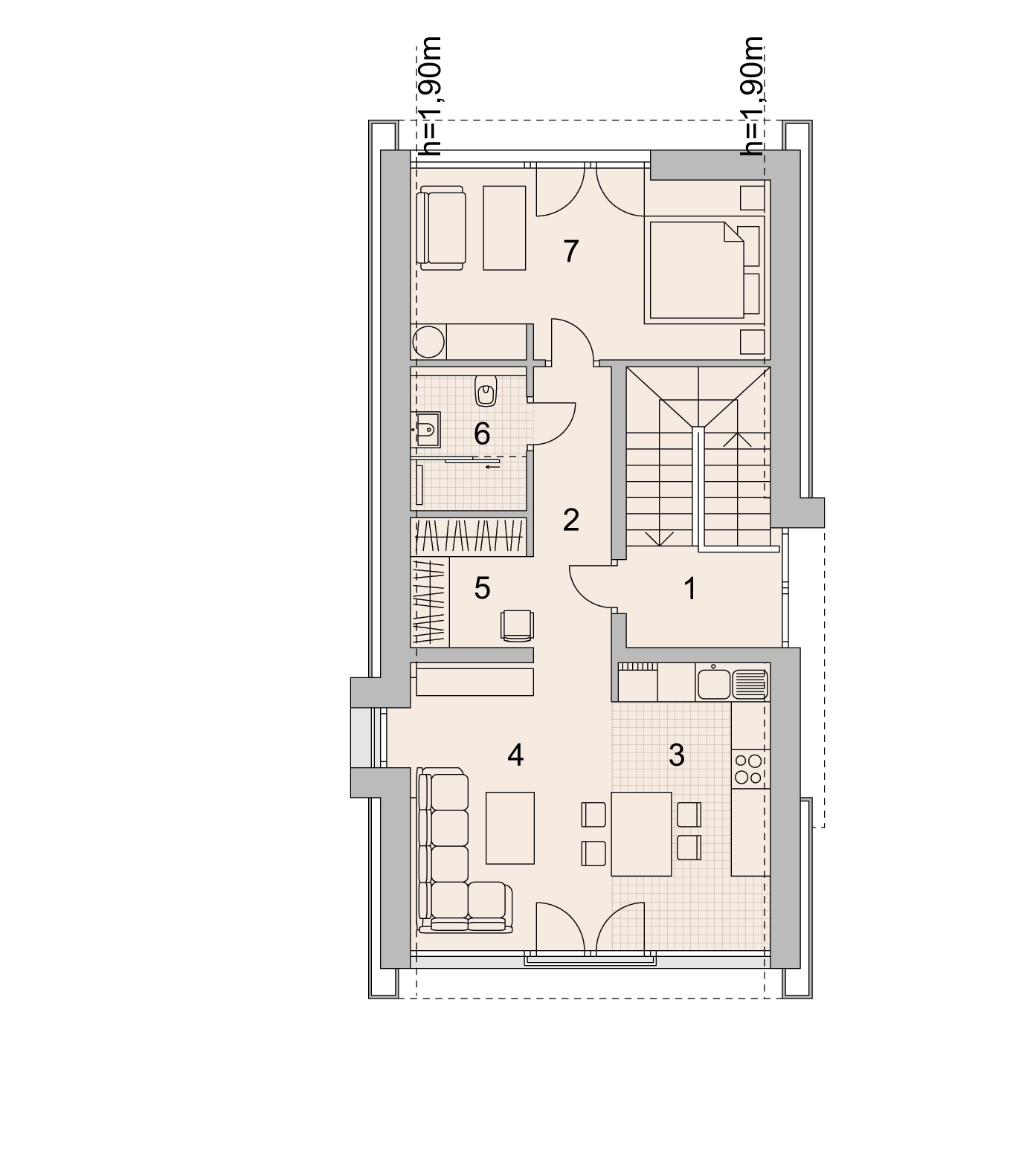

Attic
| Usable area | 63,19 (64,96) m2 |
| 1. Corridor | 4,07 (4,07) m2 |
| 2. Corridor | 6,42 (6,42) m2 |
| 3. Kitchen with dining area | 11,66 (12,12) m2 |
| 4. Living room | 15,15 (15,41) m2 |
| 5. Wardrobe | 4,16 (4,37) m2 |
| 6. Bathroom | 4,40 (4,64) m2 |
| 7. Bedroom | 17,33 (17,93) m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
