Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 193,92 m² |
| 2. Area garage | 26,63 m² |
| 3. Building area | 191,44 m² |
| 4. Building height | 9,00 m |
| 5. Attic wall height | 1,00 m |
| 6. Roof angle | 42,00 ° |
| 7. Сeiling height | 2,70 m |
| 8. Minimum plot size | 17,60 x 30,70 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termonium fasada styrofoam by Termo Organika with a thickness of 20 cm |
| 4. Interior walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 5. Partition walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with rockwool with a thickness of 40 cm by Isover firm |
| 8. Roofing | roof tile Koramic Orea 9 |
| 9. Facade | plates with quartz sinters Laminam, sheet metal on Ruukki seam, silicone external plaster |
| 10. Windows and doors | aluminum ones by Aluprof firm |
| 11. Type of heating | heat pump with horizontal collector, floor heating |
| 12. Ventilation | mechanical with recuperation |

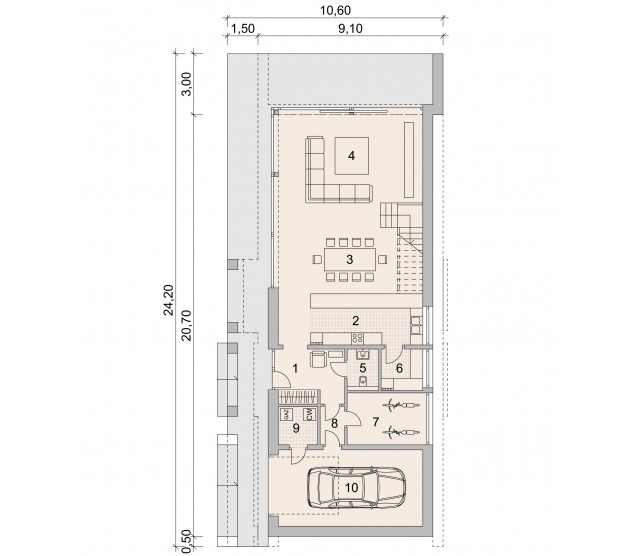

Ground floor
| Usable area | 131,87 + 26,63 m2 |
| 1. Lobby | 8,73 m2 |
| 2. Kitchen | 17,90 m2 |
| 3. Canteen | 25,09 m2 |
| 4. Living room | 30,71 m2 |
| 5. Restroom | 3,16 m2 |
| 6. Pantry | 4,17 m2 |
| 7. Gym | 9,49 m2 |
| 8. Corridor | 2,28 m2 |
| 9. Utility room | 3,71 m2 |
| 10. Garage | 26,63 m2 |
Attic
| Usable area | 88,68 (159,64) m2 |
| 1. Corridor | 26,82 (28,01) m2 |
| 2. Room | 16,01 (16,01) m2 |
| 3. Wardrobe | 6,80 (8,61) m2 |
| 4. Bathroom | 10,49 (10,49) m2 |
| 5. Wardrobe 2 | 6,96 (8,59) m2 |
| 6. Office | 11,08 (14,14) m2 |
| 7. Room 2 | 6,49 (9,31) m2 |
| 8. Bathroom 2 | 4,03 (5,43) m2 |
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
Recently viewed projects
193,92 + 26,63 m²
Concept
- Usable area 193,92 m²
- Area garage 26,63 m²
- Total surface m²
- Building area 191,44 m²
- Net volume m³
- Foundation footings made of reinforced concrete
- Foundation walls concrete
- Exterior walls Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termonium fasada styrofoam by Termo Organika with a thickness of 20 cm
- Interior walls Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 25 cm
- Partition walls Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm
