See Mirror image
Two storey house in modern style with usable area 152,91 m2. House project with cellar. Minimum size of a plot needed for building a house is 22,1x19,8 m.
Author:
mgr inż. arch. LESZEK KALANDYK
mgr inż. arch. KLAUDIA BOŻEK
| 1. Usable area | 152,91 m² |
| 2. Basement area | 88,83 m² |
| 3. Total surface | 338,89 m² |
| 4. Building area | 118,16 m² |
| 5. Net volume | 729,19 m³ |
| 6. Gross volume | 956,5 m³ |
| 7. Building height | 8,95 m |
| 8. Roof angle | 30 ° |
| 9. Сeiling height | 2,7 m |
| 10. Minimum plot size | 22,1 x 19,8 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete block |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termonium styrofoam facade by Termo Organika with a thickness of 20 cm |
| 4. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 25cm |
| 5. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with rockwool by Isover firm |
| 8. Roofing | roof tile |
| 9. Facade | silicone plaster color: white, gray, dark gray, lining made of virgin stone - sandstone |
| 10. Windows and doors | PVC |
| 11. Type of heating | pellet boiler, gas boiler, solar panels, floor heating |
| 12. Ventilation | Mechanical with recuperation + gravitational |
Basement
| Usable area | 88,83 m2 |
| 1. Hall | 3,36 m2 |
| 2. Pantry | 2,23 m2 |
| 3. Hall 2 | 5,99 m2 |
| 4. Garage | 48 m2 |
| 5. Pantry | 6,29 m2 |
| 6. Kitchen | 9,81 m2 |
| 7. Laundry room | 6 m2 |
| 8. Boiler room | 7,16 m2 |
Ground floor
| Usable area | 77,93 m2 |
| 1. Lobby | 6,25 m2 |
| 2. Pantry | 4,09 m2 |
| 3. Kitchen | 12 m2 |
| 4. Hall | 6,92 m2 |
| 5. Bathroom | 3,18 m2 |
| 6. Living room with dining area | 33,18 m2 |
| 7. Guest room | 12,31 m2 |

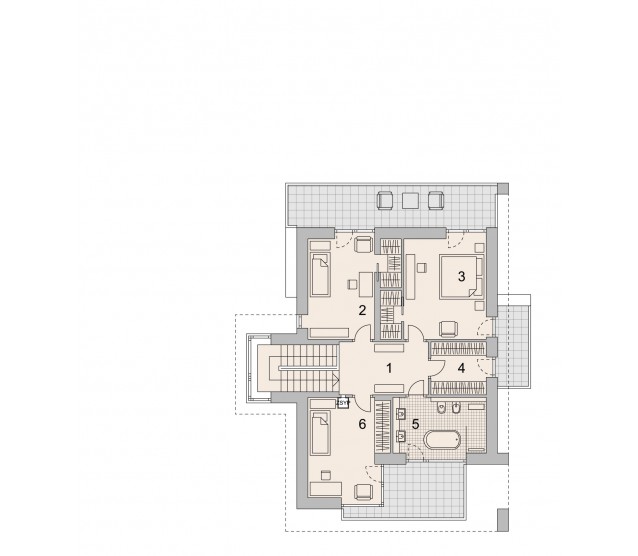

Floor
| Usable area | 74,99 m2 |
| 1. Hall | 9,48 m2 |
| 2. Bedroom | 15,55 m2 |
| 3. Bedroom 2 | 18,7 m2 |
| 4. Wardrobe | 5,89 m2 |
| 5. Bathroom | 10,46 m2 |
| 6. Bedroom 3 | 14,91 m2 |
1-530x300.jpg)
2-530x300.jpg)
3-530x300.jpg)
4-530x300.jpg)
What does Concept mean?
Unfortunately, this project does not have a technical study. We have added this project to the catalogue as an inspiration for our future clients. The development of this project can be ordered at the price of an individual project.
Ask for the current price from our consultant. Go to the Contact page.
