See Mirror image
Two storey house in modern style with usable area 192,95 m2. House with a large garage and cellar.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 192,95 m² |
| 2. Basement area | 53,31 m² |
| 3. Area garage | 38,48 m² |
| 4. Total surface | 510 m² |
| 5. Building area | 212 m² |
| 6. Net volume | 1065 m³ |
| 7. Gross volume | 1668 m³ |
| 8. Building height | 9,95 m |
| 9. Roof angle | 34 ° |
| 10. Roof area | 340,45 m² |
| 11. Minimum plot size | 25 x 24,7 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | made of reinforced concrete |
| 3. Exterior walls | YTONG cellular concrete block with a thickness of 30 cm by Wienerberger, lined with Termonium fasada styrofoam from Termo Organika company with a thickness of 20 cm |
| 4. Interior walls | YTONG aerated concrete blocks with a thickness of 24 cm |
| 5. Partition walls | YTONG aerated concrete blocks with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Roof construction | wooden |
| 8. Facade | silicone plaster color: white, virgin stone cut panels |
| 9. Windows and doors | aluminum |
| 10. Type of heating | heat pump |
| 11. Ventilation | mechanical with recuperation |

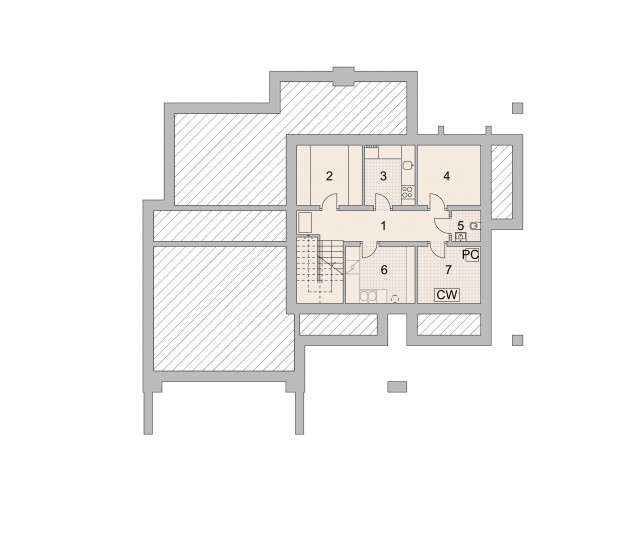

Basement
| Usable area | 53,31 m2 |
| 1. Corridor | 9,96 m2 |
| 2. Pantry | 8,87 m2 |
| 3. Kitchen | 6,82 m2 |
| 4. Storeroom | 8,58 m2 |
| 5. Restroom | 1,99 m2 |
| 6. Laundry room | 8,93 m2 |
| 7. Boiler room | 8,16 m2 |
Ground floor
| Usable area | 113,77 m2 |
| 1. Lobby | 10,45 m2 |
| 2. Corridor | 12,44 m2 |
| 3. Pantry | 2,42 m2 |
| 4. Kitchen | 13,22 m2 |
| 5. Canteen | 15,05 m2 |
| 6. Living room | 38,02 m2 |
| 7. Office | 17,44 m2 |
| 8. Bathroom | 4,73 m2 |
| 9. Garage | 38,48 m2 |
Floor
| Usable area | 79,18 m2 |
| 1. Corridor | 9,16 m2 |
| 2. Wardrobe | 5,77 m2 |
| 3. Room | 14,16 m2 |
| 4. Room 2 | 14,7 m2 |
| 5. Bathroom | 10,85 m2 |
| 6. Bedroom | 16,2 m2 |
| 7. Wardrobe 2 | 8,34 m2 |
1-530x300.jpg)
2-530x300.jpg)
3-530x300.jpg)
4-530x300.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
