See Mirror image

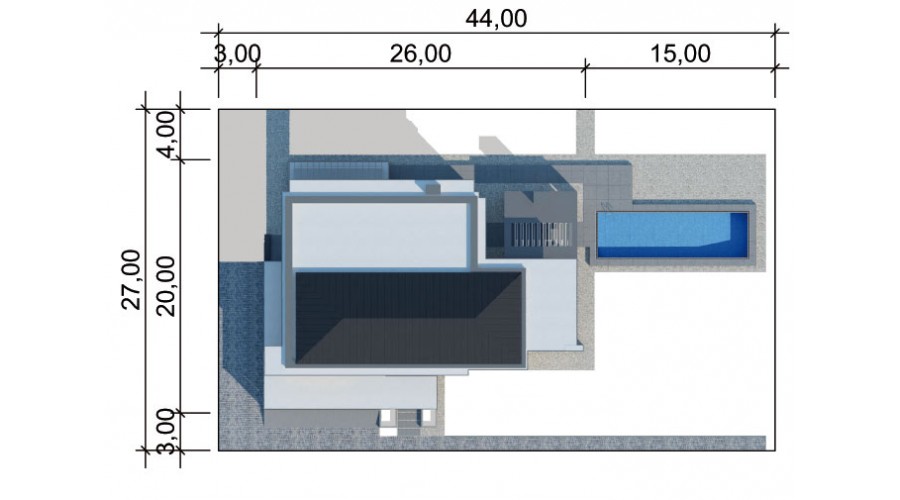

Two storey house in modern style with usable area 341,57 m2. House with a large garage. Minimum size of a plot needed for building a house is 36,8x27 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 341,57 m² |
| 2. Area garage | 61,62 m² |
| 3. Additional area | 9,76 m² |
| 4. Total surface | 564,74 m² |
| 5. Building area | 337,54 m² |
| 6. Net volume | 1208,22 m³ |
| 7. Gross volume | 2431,58 m³ |
| 8. Building height | 10,85 m |
| 9. Roof angle | 35 ° |
| 10. Roof area | 164,08 m² |
| 11. Сeiling height | 3,00 m m |
| 12. Minimum plot size | 36,8 x 27 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termonium styrofoam facade by Termo Organika with a thickness of 20 cm and rockwool Super Vent Plus by Isover with a thickness of 20 cm |
| 4. Interior walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 5. Partition walls | Porotherm Profi ceramic hollow bricks by Wienerberger, thickness: 11.5cm |
| 6. Ceiling | reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with mineral wool with a thickness of 32 cm by Isover firm |
| 8. Roofing | ceramic roof tile flat |
| 9. Facade | silicone plaster, color: white, light grey, dark grey, wood imitating HPL elevation plates e.g. Trespa color: Harmony Oak |
| 10. Windows and doors | aluminum |
| 11. Type of heating | heat pump, underfloor heating |
| 12. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 188,43 m2 |
| 1. Lobby | 13,86 m2 |
| 2. Corridor | 24,05 m2 |
| 3. Kitchen | 17,11 m2 |
| 4. Pantry | 8,13 m2 |
| 5. Canteen | 27,29 m2 |
| 6. Living room | 43,54 m2 |
| 7. Utility room | 5,92 m2 |
| 8. Office | 11,5 m2 |
| 9. Tambour | 5,93 m2 |
| 10. Bathroom | 4,9 m2 |
| 11. Jacuzzi | 21,3 m2 |
| 12. Sauna | 4,9 m2 |
| 13. Garage | 61,62 m2 |
| 14. Storeroom | 9,76 m2 |
Floor
| Usable area | 153,14 m2 |
| 1. Corridor | 23,26 m2 |
| 2. Room | 15,96 m2 |
| 3. Room 2 | 15,96 m2 |
| 4. Bathroom | 13,86 m2 |
| 5. Laundry room | 11,24 m2 |
| 6. Pantry | 9,39 m2 |
| 7. Wardrobe | 19,74 m2 |
| 8. Bathroom 2 | 14,27 m2 |
| 9. Bedroom | 29,45 m2 |
1-530x300.jpg)
2-530x300.jpg)
3-530x300.jpg)
4-530x300.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
