Two storey house in modern style with usable area 279,04 m2. Minimum size of a plot needed for building a house is 27,72x23 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 279,04 m² |
| 2. Total surface | 391,46 m² |
| 3. Building area | 210,47 m² |
| 4. Net volume | 1162,02 m³ |
| 5. Gross volume | 1403,15 m³ |
| 6. Building height | 8,82 m |
| 7. Attic wall height | 0,3 m |
| 8. Roof angle | 30 ° |
| 9. Roof area | 172,01 m² |
| 10. Сeiling height | 2,88 m; 2,90 m |
| 11. Minimum plot size | 27,72 x 23 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation with Termonium styrofoam facade by Termo Organika with a thickness of 20 cm |
| 4. Interior walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 5. Partition walls | Porotherm Profi ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with rockwool 33 cm thick by Isover firm |
| 8. Roofing | roof tile Wienerberger orea 9 |
| 9. Facade | silicone plaster color: white, facade plates LAMINAM Nero intenso, NATURALI - OSSIDIANA VENA SCURA and NATURALI - BASALTO VENA CHIARA |
| 10. Windows and doors | aluminum |
| 11. Type of heating | gas boiler, underfloor |
| 12. Ventilation | mechanical with recuperation |

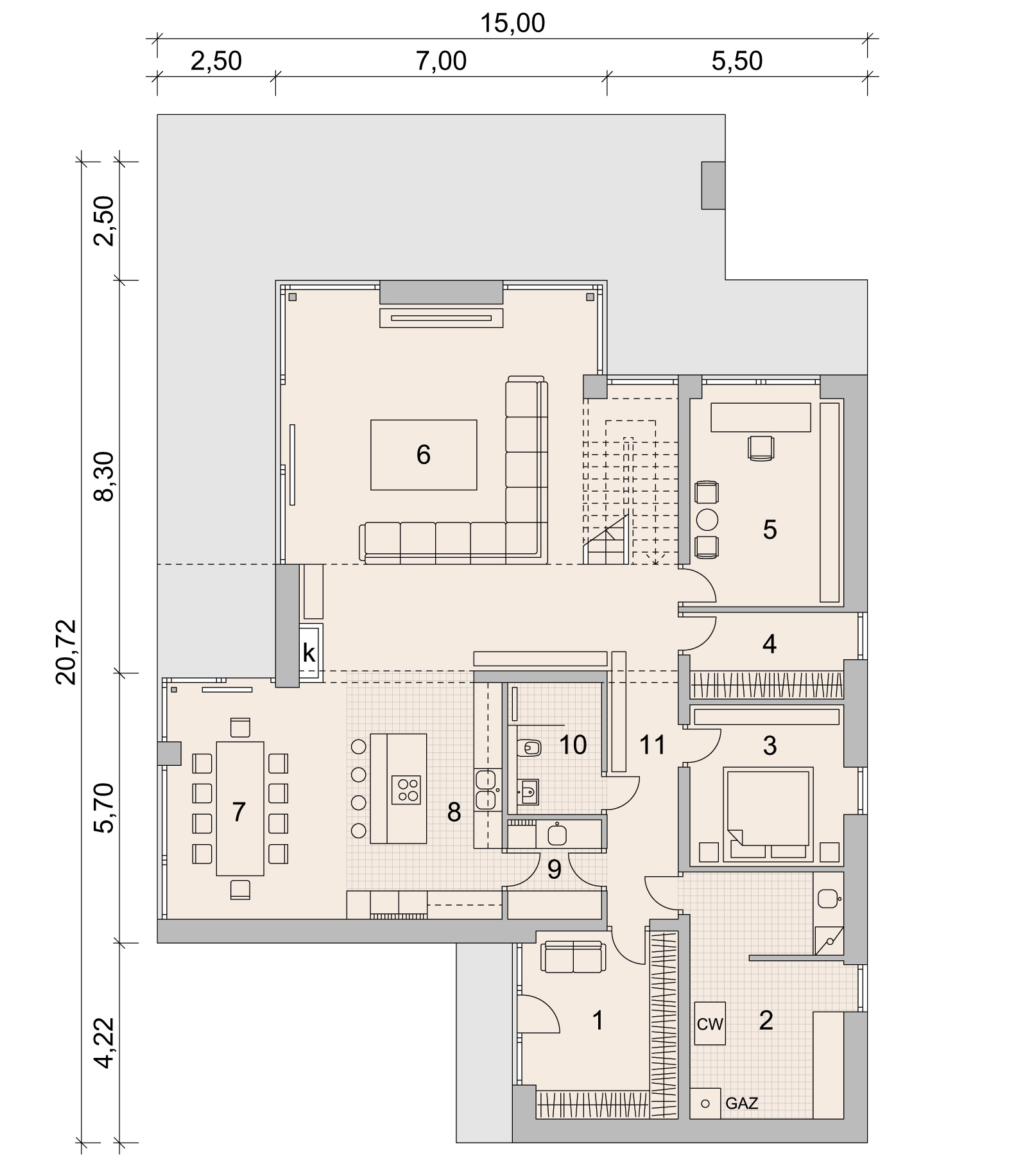

Ground floor
| Usable area | 163,9 m2 |
| 1. Hall / Closet | 11,82 m2 |
| 2. Boiler room with laundry room | 16,67 m2 |
| 3. Guest room | 11,12 m2 |
| 4. Locker room | 5,96 m2 |
| 5. Office | 14,3 m2 |
| 6. Living room | 48,46 m2 |
| 7. Canteen | 19,54 m2 |
| 8. Kitchen | 13,92 m2 |
| 9. Pantry | 4,19 m2 |
| 10. Restroom | 5,53 m2 |
| 11. Corridor | 12,37 m2 |
Floor
| Usable area | 115,13 m2 |
| 1. Corridor | 10,5 m2 |
| 2. Room | 16,95 m2 |
| 3. Wardrobe | 4,87 m2 |
| 4. Bathroom | 7,93 m2 |
| 5. Wardrobe 2 | 4,65 m2 |
| 6. Room 2 | 19,46 m2 |
| 7. Wardrobe 3 | 15,18 m2 |
| 8. Bedroom | 21,84 m2 |
| 9. Bathroom 2 | 13,75 m2 |
1-530x300.jpg)
2-530x300.jpg)
3-530x300.jpg)
4-530x300.jpg)
4-530x300.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
