Two storey house in modern style with usable area 247,88 m2. House with a large garage and cellar.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 247,88 m² |
| 2. Basement area | 165,19 m² |
| 3. Area garage | 49,7 m² |
| 4. Total surface | 711,87 m² |
| 5. Building area | 251,37 m² |
| 6. Net volume | 2032,86 m³ |
| 7. Gross volume | 2603,03 m³ |

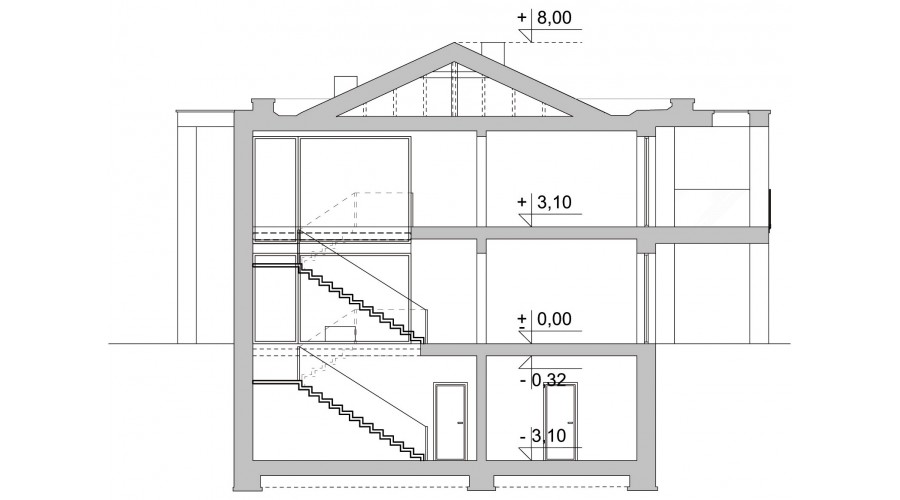

| 8. Building height | 8 m |
| 9. Roof angle | 25 ° |
| 10. Roof area | 165,21 m² |
| 11. Сeiling height | 2,78 m; 2,55 m |
| 12. Minimum plot size | 29,9 x 21,7 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulated with rockwool TF Hobby by ISOVER with a thickness of 20 cm |
| 4. Interior walls | Porotherm Dryfix hollow brick with a thickness of 25 cm by Wienerberger |
| 5. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Roof construction | wooden , insulated with rockwool with a thickness of 40 cm by Isover firm |
| 8. Roofing | WIENERBERGER OREA 9 flat ceramic roof tile, titanium-zinc sheet metal. of the firm RHEINZINK |
| 9. Facade | silicone plaster color: white, Trespa METEO GLOSS facade plates - anthracite color |
| 10. Windows and doors | aluminum YAWAL |
| 11. Type of heating | heat pump, floor |
| 12. Ventilation | mechanical with recuperation |

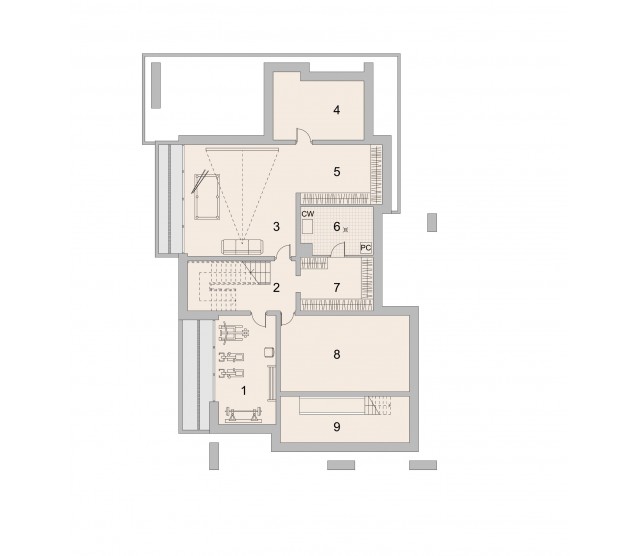

Basement
| Usable area | 165,19 m2 |
| 1. Fitness | 18,9 m2 |
| 2. Tambour | 6,62 m2 |
| 3. Home Theater | 36,59 m2 |
| 4. Stock | 17 m2 |
| 5. Wardrobe | 15,67 m2 |
| 6. Boiler room | 10,68 m2 |
| 7. Storage room for sports equipment | 11,8 m2 |
| 8. Warehouse 2 | 29,82 m2 |
| 9. Car channel | 18,11 m2 |
Ground floor
| Usable area | 118,68 m2 |
| 1. Lobby | 11,71 m2 |
| 2. Pantry | 7,46 m2 |
| 3. Kitchen | 17,97 m2 |
| 4. Canteen | 18,25 m2 |
| 5. Living room | 38,38 m2 |
| 6. Corridor | 9,63 m2 |
| 7. Bathroom | 5,2 m2 |
| 8. Office | 10,08 m2 |
| 9. Garage | 49,7 m2 |
Floor
| Usable area | 129,2 m2 |
| 1. Corridor | 29,94 m2 |
| 2. Bedroom | 19,1 m2 |
| 3. Laundry room | 6,06 m2 |
| 4. Room | 16,21 m2 |
| 5. Room 2 | 16,21 m2 |
| 6. Wardrobe | 3,84 m2 |
| 7. Bathroom | 11,8 m2 |
| 8. Wardrobe 2 | 8,05 m2 |
| 9. Bedroom 2 | 18 m2 |
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
-1430x1073.jpg)
2-1430x1073.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
-cr-190x96.jpg)
2-cr-190x96.jpg)
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
