House with attic in traditional style with usable area 87,53 m2. House with a single garage. Minimum size of a plot needed for building a house is 21,1x17,52 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 87,53 m² |
| 2. Total surface | 235,7 m² |
| 3. Building area | 117,85 m² |
| 4. Net volume | 405 m³ |
| 5. Gross volume | 665 m³ |
| 6. Building height | 7,34 m |
| 7. Roof angle | 35 ° |
| 8. Roof area | 182 m² |
| 9. Minimum plot size | 21,1 x 17,52 m |
| 1. Foundation footings | made of reinforced concrete with a thickness of 25 cm |
| 2. Foundation walls | concrete |
| 3. Exterior walls | Porotherm 25 DRYFIX ceramic hollow brick by Winerberger, thickness 25 cm |
| 4. Interior walls | Porotherm ceramic blocks by Wienerberger with a thickness of 18.8 cm, 11.5 cm, light walls in the hollow brick system on a 75 mm load-bearing profile, covered with 12.5 mm GK boards with 7.5 cm mineral wool filling |
| 5. Ceiling | reinforced concrete, monolithic |
| 6. Roof construction | wooden , rafter - collar beam trusses + mineral wool from Rockwool company with total thickness of 16 cm |
| 7. Roofing | ceramic roof tile in the Koramic system by Wienerberger firm |
| 8. Facade | silicone plaster, virgin stone lining 2 cm thick |
| 9. Windows and doors | aluminum |
| 10. Type of heating | gas |
| 11. Ventilation | gravitational, mechanical |

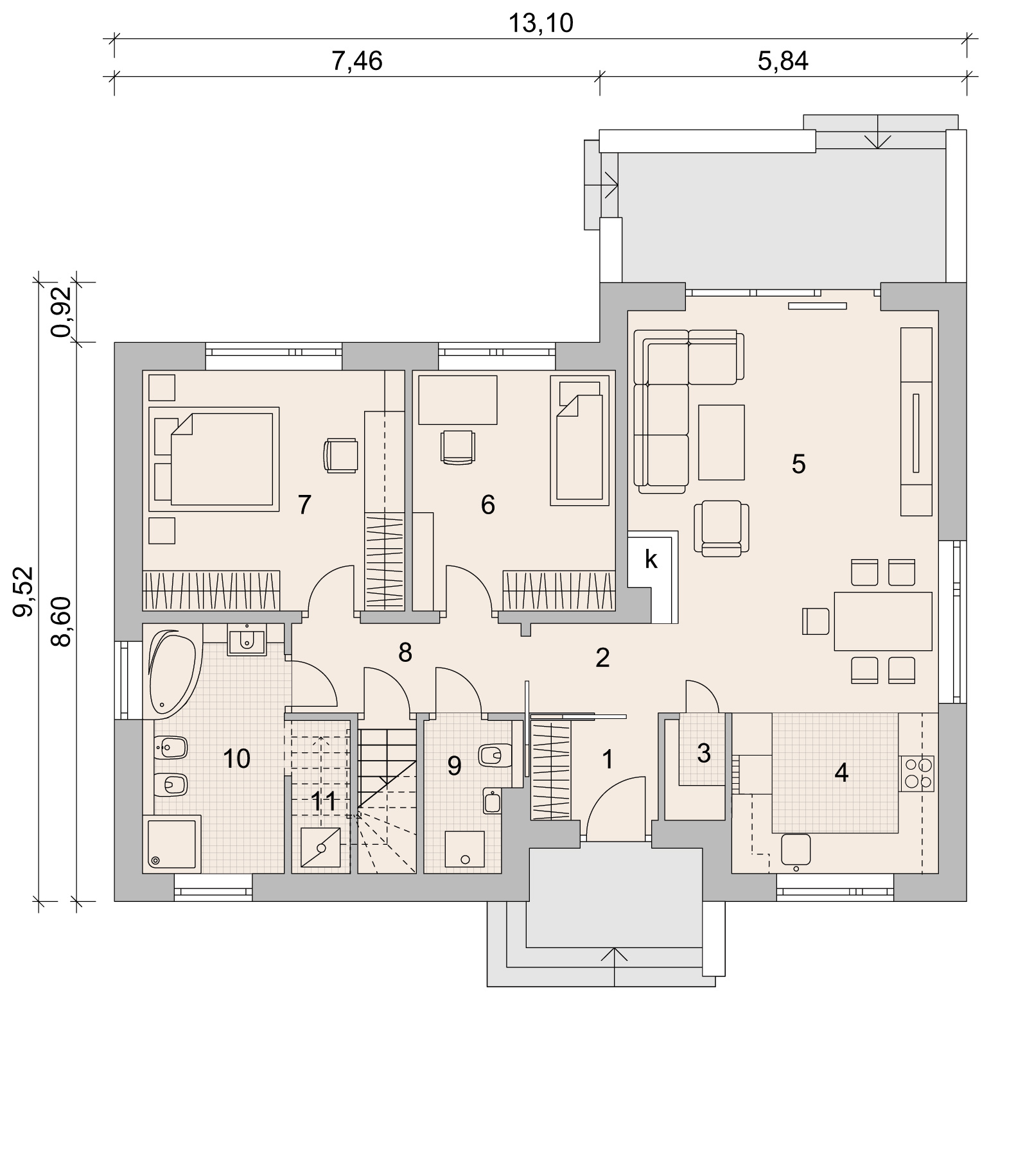

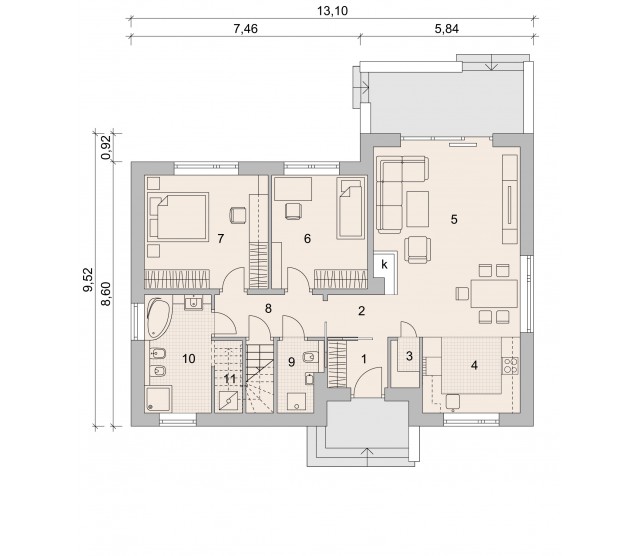

Ground floor
| Usable area | 87,53 m2 |
| 1. Tambour | 3 m2 |
| 2. Hall | 2,65 m2 |
| 3. Pantry | 1,44 m2 |
| 4. Kitchen | 7,85 m2 |
| 5. Living room with dining area | 28,9 m2 |
| 6. Bedroom | 11,55 m2 |
| 7. Bedroom 2 | 14,93 m2 |
| 8. Corridor | 4,83 m2 |
| 9. Toilet / Boiler | 2,95 m2 |
| 10. Bathroom | 8,39 m2 |
| 11. Bathroom + Laundry | 1,04 (2,11) m2 |

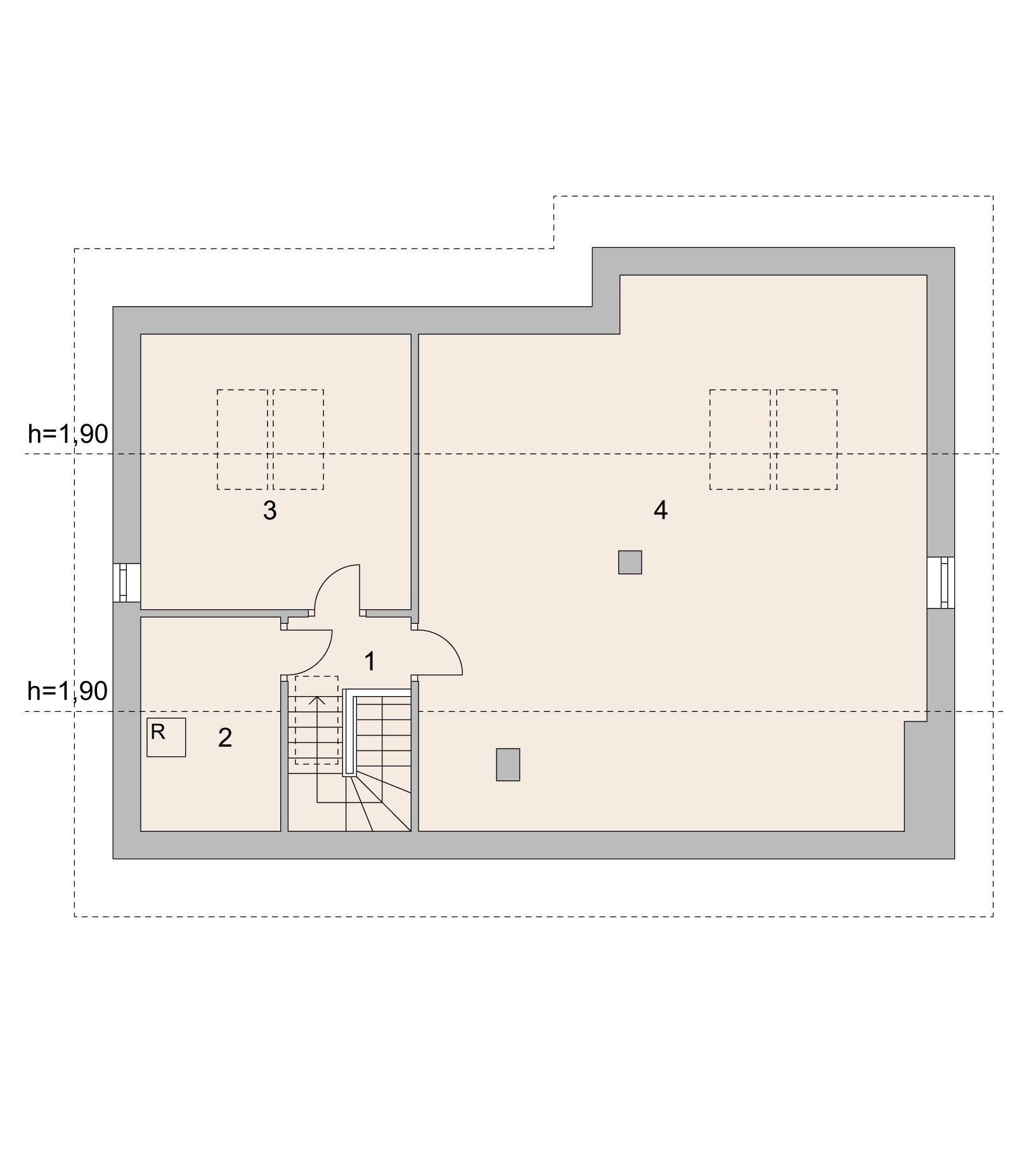

Attic
| Usable area | 46,9 (91,32) m2 |
| 1. Corridor | 2,24 (2,24) m2 |
| 2. Utility room | 3,20 (7,27) m2 |
| 3. Attic | 10,20 (18,06) m2 |
| 4. Attic 2 | 31,34 (63,75) m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
