Two storey house in modern style with usable area 329,56 m2. House with a large garage. Minimum size of a plot needed for building a house is 29,4x38,6 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 329,56 m² |
| 2. Area garage | 80,14 m² |
| 3. Additional area | 24,58 m² |
| 4. Total surface | 695,58 m² |
| 5. Building area | 429,92 m² |
| 6. Net volume | 1259,59 m³ |
| 7. Building height | 10,5 m |
| 8. Roof angle | 31 ° |
| 9. Сeiling height | 2,9 m |
| 10. Minimum plot size | 29,4 x 38,6 m |
| 1. Foundation footings | plate made of reinforced concrete |
| 2. Foundation walls | concrete + extruded styrofoam with a thickness of 20 cm |
| 3. Exterior walls | Porotherm ceramic hollow bricks by Wienerberger with a thickness of 44 cm + styrofoam with a thickness of 6 cm |
| 4. Interior walls | Porotherm ceramic hollow bricks by Wienerberger with a thickness of 25 cm, 11.5 cm |
| 5. Ceiling | reinforced concrete, monolithic |
| 6. Roof construction | wooden, rafter + mineral wool with a total thickness of 30 cm |
| 7. Roofing | flat ceramic roof tile |
| 8. Facade | light travertine, silicone plaster, virgin stone, HPL plate |
| 9. Windows and doors | aluminum, brown |
| 10. Type of heating | heat pump, floor heating |
| 11. Ventilation | mechanical with recuperation |

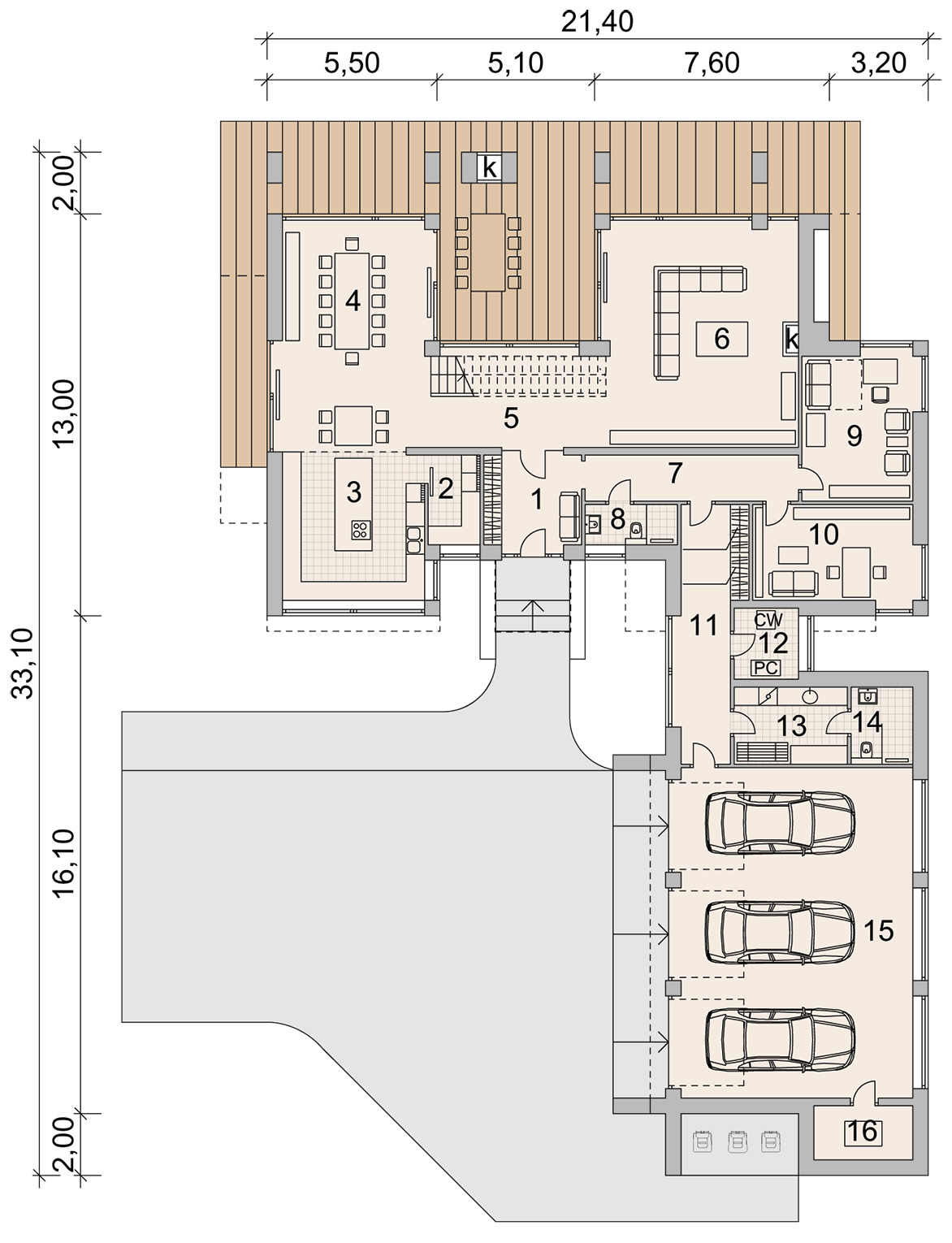

Ground floor
| Usable area | 184,75 m2 |
| 1. Lobby | 9,19 m2 |
| 2. Pantry | 4,88 m2 |
| 3. Kitchen | 22,61 m2 |
| 4. Canteen | 32,43 m2 |
| 5. Corridor | 10,33 m2 |
| 6. Living room | 43,01 m2 |
| 7. Corridor 2 | 10,25 m2 |
| 8. Bathroom | 3,88 m2 |
| 9. Guest room | 16,8 m2 |
| 10. Office | 16,07 m2 |
| 11. Corridor 3 | 15,3 m2 |
| 12. Boiler room | 4,8 m2 |
| 13. Laundry room | 9,18 m2 |
| 14. Bathroom 2 | 5 m2 |
| 15. Garage | 80,14 m2 |
| 16. Storeroom | 5,6 m2 |
Floor
| Usable area | 144,9 m2 |
| 1. Corridor | 20,93 m2 |
| 2. Bedroom | 14,78 m2 |
| 3. Bedroom 2 | 16,2 m2 |
| 4. Bedroom 3 | 15,49 m2 |
| 5. Laundry room | 9,65 m2 |
| 6. Bathroom | 11 m2 |
| 7. Wardrobe | 17,48 m2 |
| 8. Bathroom 2 | 16,64 m2 |
| 9. Bedroom 4 | 22,73 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
