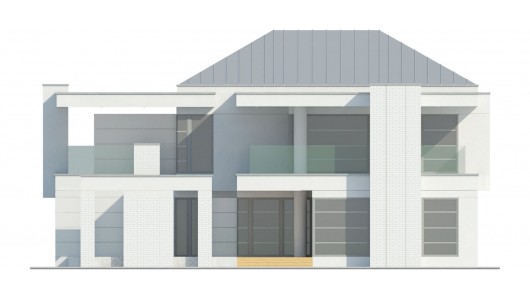

Two storey house in modern style with usable area 190 m2. House with a large garage. Minimum size of a plot needed for building a house is 25,4x25,6 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 190 m² |
| 2. Area garage | 48 m² |
| 3. Total surface | 338 m² |
| 4. Building area | 200,18 m² |
| 5. Net volume | 680 m³ |
| 6. Building height | 10,16 m |
| 7. Roof angle | 30 ° |
| 8. Roof area | 114,3 m² |
| 9. Сeiling height | 2,67 m |
| 10. Minimum plot size | 25,4 x 25,6 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete + 18 cm thick extruded styrofoam |
| 3. Exterior walls | Porotherm ceramic hollow bricks by Wienerberger with a thickness of 44 cm + styrofoam with a thickness of 6 cm |
| 4. Interior walls | Porotherm ceramic hollow bricks by Wienerberger, thickness 25 cm, 11.5 cm |
| 5. Ceiling | made of reinforced concrete, monolithic |
| 6. Roof construction | wooden, rafter + mineral wool from Rockwool company with total thickness of 30 cm |
| 7. Roofing | titanium.-zinc sheet metal |
| 8. Facade | silicone plaster, plinth and terrace virgin stone, glass brick, glass railing |
| 9. Windows and doors | aluminum |
| 10. Type of heating | gas |
| 11. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 92,12 m2 |
| 1. Lobby | 7,4 m2 |
| 2. Corridor | 8,45 m2 |
| 3. Kitchen | 20,43 m2 |
| 4. Living room | 29,62 m2 |
| 5. Canteen | 16,8 m2 |
| 6. Pantry | 2,84 m2 |
| 7. Restroom | 2,83 m2 |
| 8. Wardrobe | 3,75 m2 |
| 9. Garage | 48 m2 |
Floor
| Usable area | 97,88 m2 |
| 1. Corridor | 13,27 m2 |
| 2. Laundry room | 12,11 m2 |
| 3. Bathroom | 12,07 m2 |
| 4. Wardrobe | 8,97 m2 |
| 5. Bedroom | 18,27 m2 |
| 6. Bedroom 2 | 16,44 m2 |
| 7. Bedroom 3 | 16,75 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
