See Mirror image

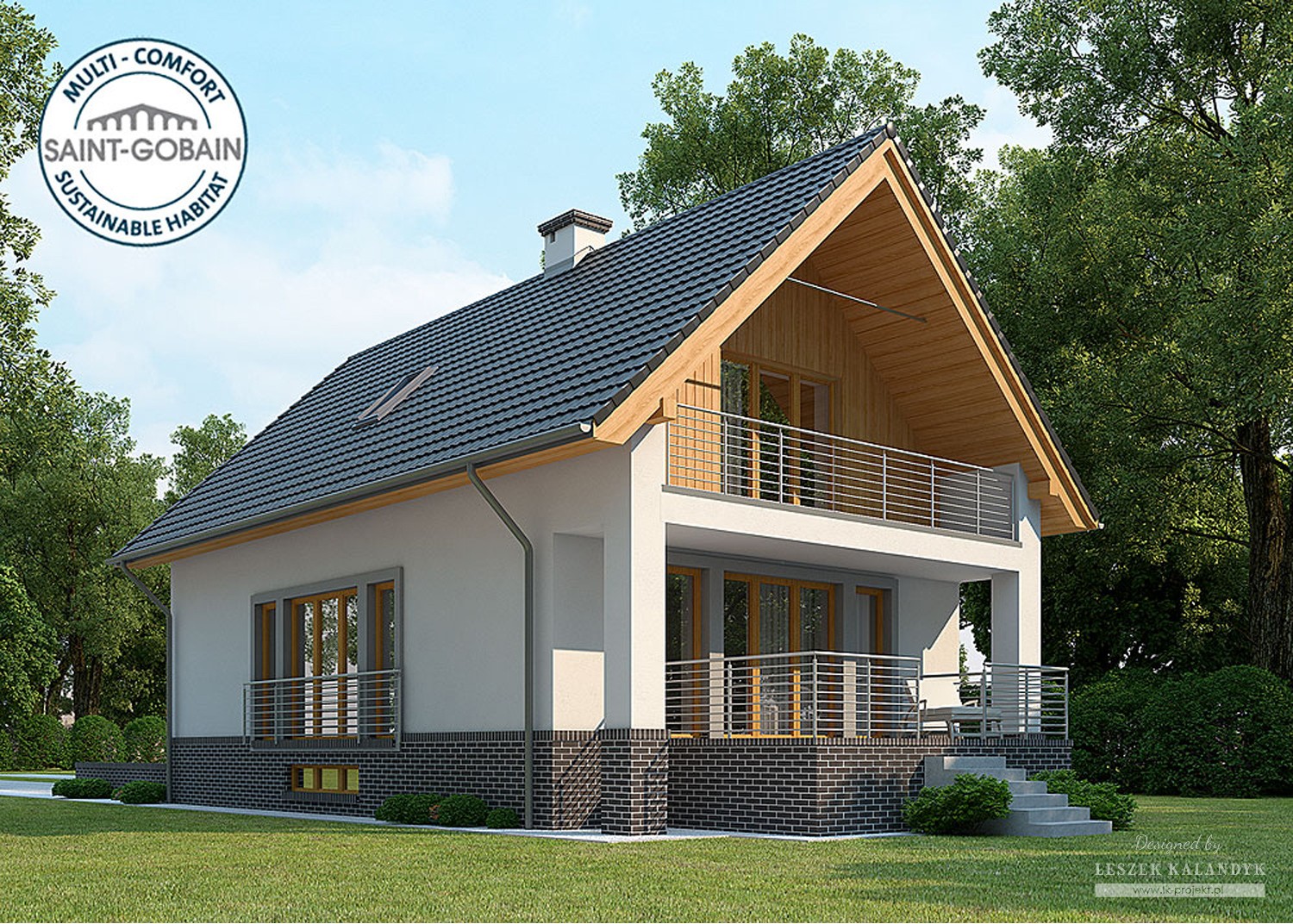

House with attic in traditional style with usable area 105,44 m2. House with a large garage. Minimum size of a plot needed for building a house is 16x28,16 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 105,44 m² |
| 2. Basement area | 55,77 m² |
| 3. Total surface | 347,64 m² |
| 4. Building area | 92,4 m² |
| 5. Net volume | 484,19 m³ |
| 6. Gross volume | 816,5 m³ |
| 7. Energy for heating | 6,79 kWh/m²*year |
| 8. Building height | 9,33 m |
| 9. Attic wall height | 1,1 m |
| 10. Roof angle | 43 ° |
| 11. Roof area | 187,56 m² |
| 12. Сeiling height | 2,65/2,70 m |
| 13. Minimum plot size | 16 x 28,16 m |
| 1. Foundation footings | made of reinforced concrete |
| 2. Foundation walls | concrete hollow brick insulated with extruded styrofoam with a thickness of 20 cm |
| 3. Exterior walls | made of hollow bricks with a thickness of 25 cm, insulated with rockwool TF-Profi by ISOVER company with a thickness of 26 cm |
| 4. Interior walls | made of porous ceramic hollow bricks with a thickness of 25 cm and gypsum blocks Rigirock by Rigips firm with a thickness of 10 cm |
| 5. Ceiling | made of reinforced concrete |
| 6. Roof construction | wooden, rafter, insulated with rockwool from ISOVER with a thickness of 36 cm |
| 7. Roofing | ceramic roof tile |
| 8. Facade | finished with silicone plaster by WEBER firm, clinker brick |
| 9. Windows and doors | PVC with Glassolutions window panels |
| 10. Type of heating | gas boiler, hot water heating supported by solar collectors, floor heating and radiator heating |
| 11. Ventilation | mechanical with recuperation |
Basement
| Usable area | 55,77 m2 |
| 1. Corridor | 3,11 m2 |
| 2. Laundry room with boiler | 16,22 m2 |
| 3. Garage | 31,09 m2 |
| 4. Storeroom | 5,35 m2 |
Ground floor
| Usable area | 61,23 m2 |
| 1. Lobby | 5,21 m2 |
| 2. Hall | 4,05 m2 |
| 3. Kitchen | 12,97 m2 |
| 4. Canteen | 10,37 m2 |
| 5. Living room | 26,46 m2 |
| 6. Restroom | 3,17 m2 |
Attic
| Usable area | 44,21 (56,8) m2 |
| 1. Hall | (8,75) 8,75 m2 |
| 2. Bedroom | (10,78) 8,13 m2 |
| 3. Bathroom | (8,39) 6,32 m2 |
| 4. Wardrobe | (3,59) 2,05 m2 |
| 5. Wardrobe 2 | (3,57) 2,04 m2 |
| 6. Bedroom 2 | (17,89) 14,73 m2 |
| 7. Utility room | (3,83) 2,16 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
