House with attic in traditional style with usable area 126,1 m2. House with a single garage. Minimum size of a plot needed for building a house is 21,7x18,6 m.
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 126,1 m² |
| 2. Area garage | 20,18 m² |
| 3. Additional area | 10,87 m² |
| 4. Total surface | 246 m² |
| 5. Building area | 126 m² |
| 6. Net volume | 465 m³ |
| 7. Gross volume | 782 m³ |
| 8. Energy for heating | 8,13 kWh/m²*year |
| 9. Building height | 8,8 m |
| 10. Attic wall height | 1,09 m |
| 11. Roof angle | 42 ° |
| 12. Roof area | 210 m² |
| 13. Сeiling height | 2,60/2,40 m |

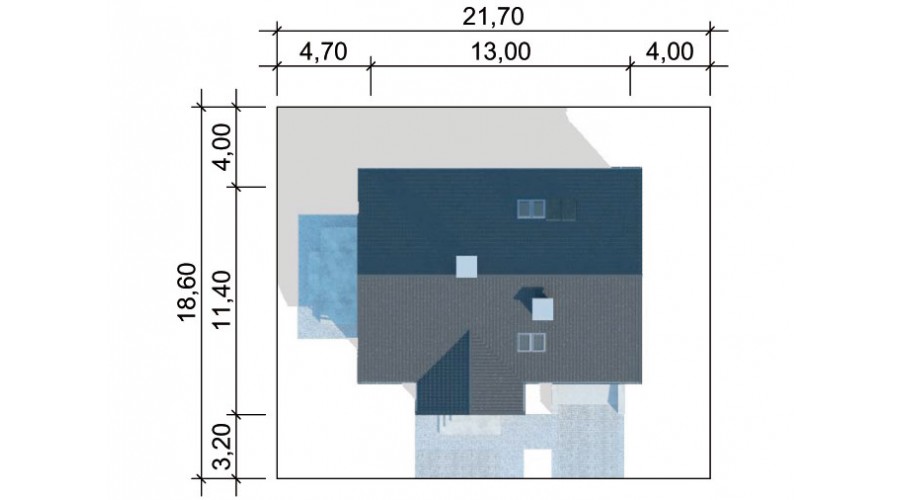

| 14. Minimum plot size | 21,7 x 18,6 m |
| 1. Foundation footings | ferroconcrete |
| 2. Foundation walls | of expanded concrete blocks with a thickness of 24 cm by LECA, insulated with extruded styrofoam with a thickness of 20 cm |
| 3. Exterior walls | made of 24 cm thick aerated concrete blocks, insulated with 24 cm thick TF-Profi mineral wool from the firm Isover |
| 4. Interior walls | of cellular concrete blocks with a thickness of 24 cm, lightweight concrete frame wall in the system of dry construction with a thickness of 12.5 cm |
| 5. Ceiling | ferroconcrete |
| 6. Roof construction | wooden, rafter, protected by rockwool from the firm Isover with a total thickness of 36 cm |
| 7. Roofing | ceramic roof tile |
| 8. Facade | finished with silicone plaster by Weber company, virgin stone cut |
| 9. Windows and doors | PVC |
| 10. Type of heating | gas boiler, DHW heating supported by solar collectors, floor heating and radiator heating |
| 11. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 59,16 m2 |
| 1. Lobby | 3,53 m2 |
| 2. Pantry | 1,2 m2 |
| 3. Kitchen | 7,12 m2 |
| 4. Living room with dining area | 24,12 m2 |
| 5. Hall | 8,88 m2 |
| 6. Office | 10,86 m2 |
| 7. Bathroom | 3,45 m2 |
| 8. Boiler room | 4,83 m2 |
| 9. Garage | 20,18 m2 |
| 10. Storeroom | 6,04 m2 |
Attic
| Usable area | 66,94 (85,99) m2 |
| 1. Hall | (11,27) 11,27 m2 |
| 2. Bedroom | (10,36) 7,97 m2 |
| 3. Bedroom 2 | (18,56) 14,28 m2 |
| 4. Laundry room | (9,10) 6,07 m2 |
| 5. Bedroom 3 | (14,29) 11,02 m2 |
| 6. Bedroom 4 | (14,20) 10,92 m2 |
| 7. Bathroom | (8,21) 5,41 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
